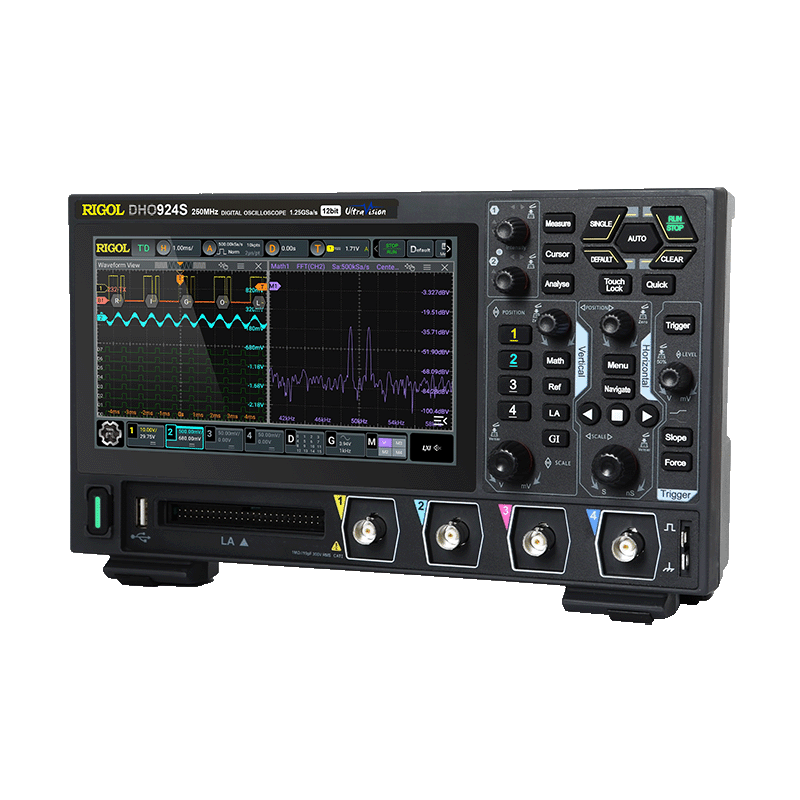

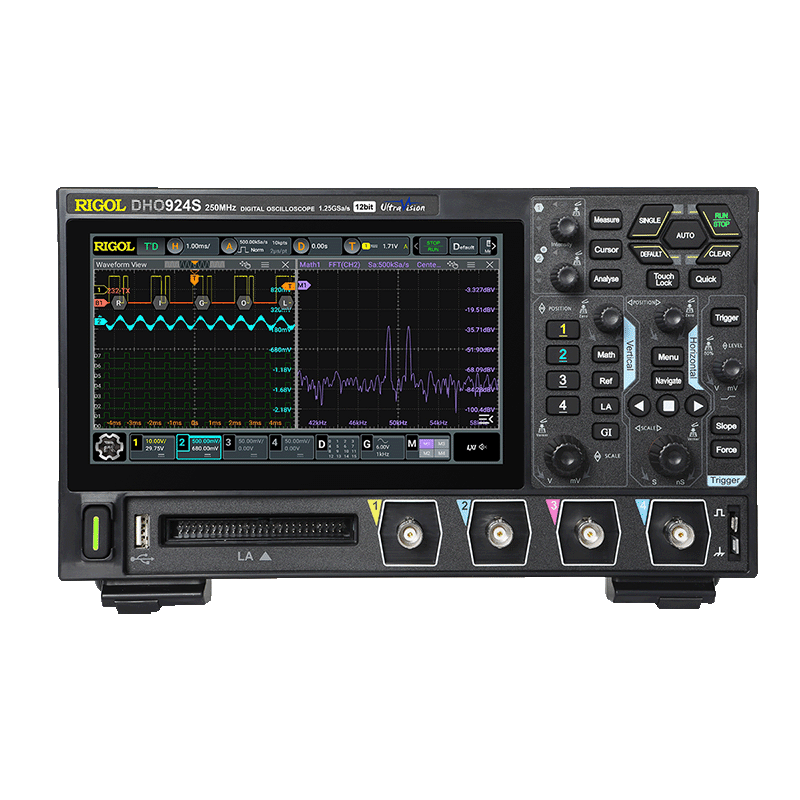

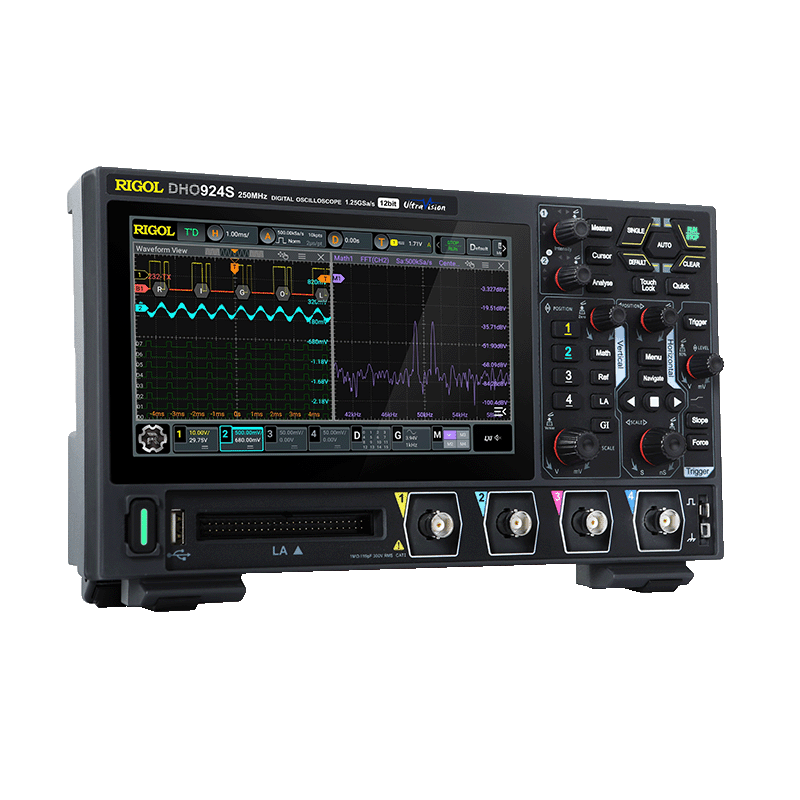

Rigol DHO924S 4 Channel, 250MHz, 1.25GSa/s 12 Bit Digital Oscilloscope + AWG

Video

Description

Rigol DHO924S 250 MHz Digital Oscilloscope – Compact 4-channel mixed-signal oscilloscope with 12-bit resolution, 1.25 GSa/s sampling rate, 50 Mpts memory, and up to 1,000,000 wfms/s capture rate. Built-in 25 MHz arbitrary function generator (AFG), ultra-low noise floor, and 7″ touchscreen. Perfect for embedded design, education, and precise signal analysis.

Warranty:
3 years Limited Warranty.
Exact RIGOL warranties can be verified here.

Read more

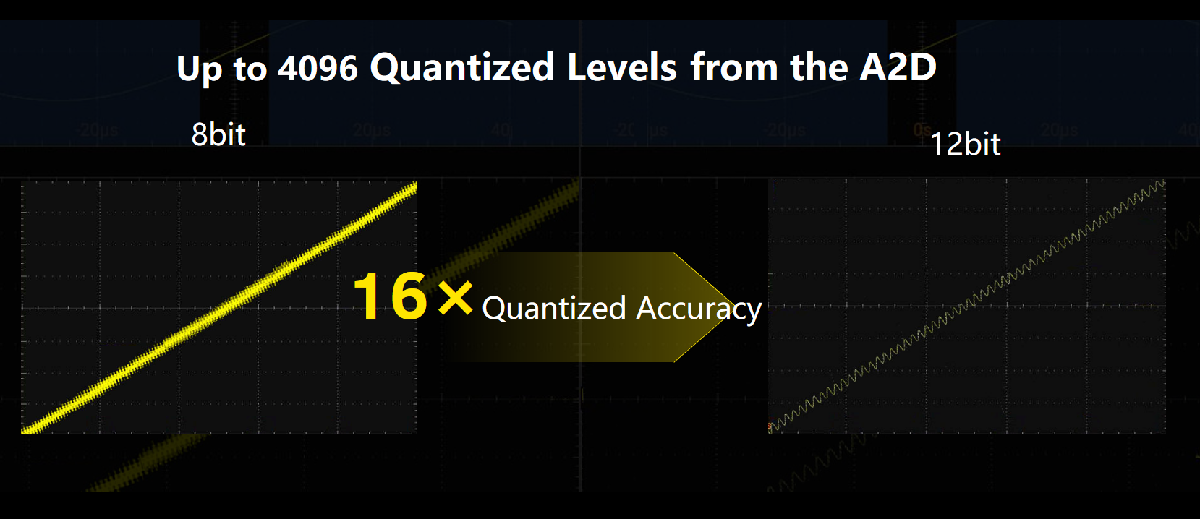

High 12-bit resolution

The DHO900 series offers a 12-bit vertical resolution with 4096 levels of quantization, 16 times more precise than 8-bit resolution. This upgrade significantly enhances waveform measurement accuracy, particularly in critical applications like power ripple testing and medical equipment detection.

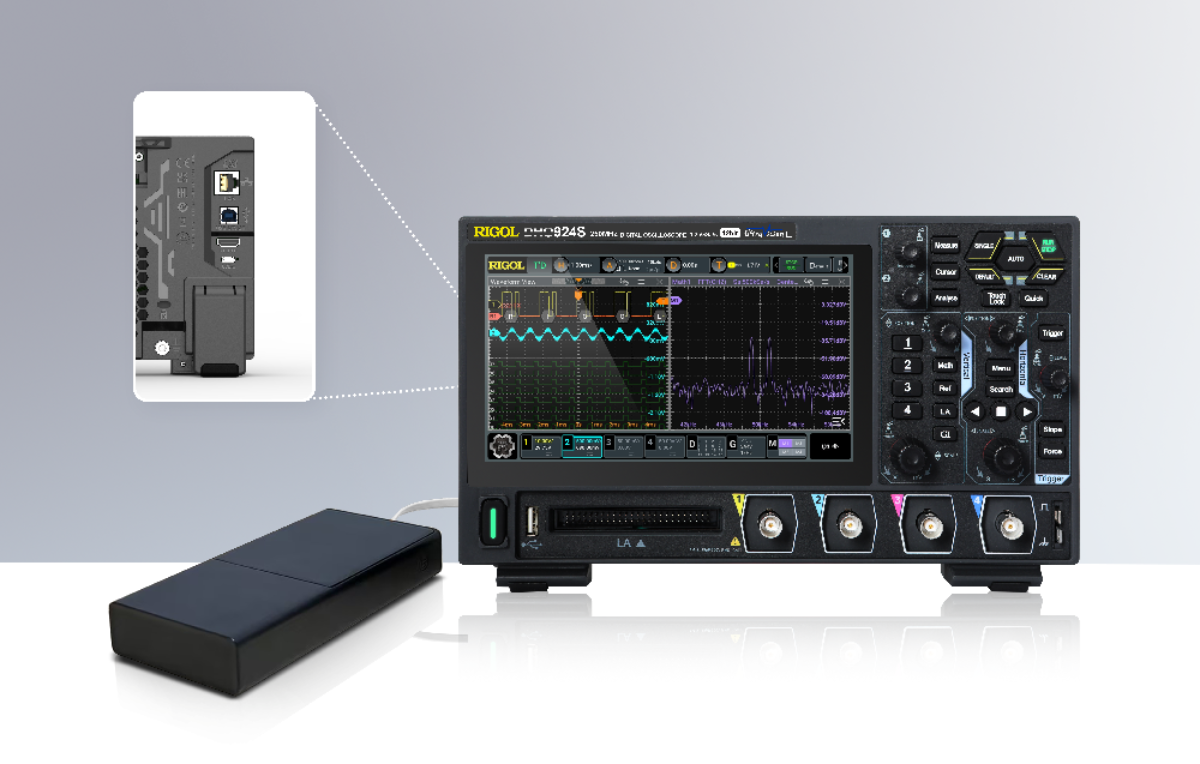

Supports USB Type-C Power

The Type-C power supply interface design of the DHO900 series allows the device to be powered by a single portable power bank, meeting the requirements of on-site chip testing and circuit maintenance, among other applications.

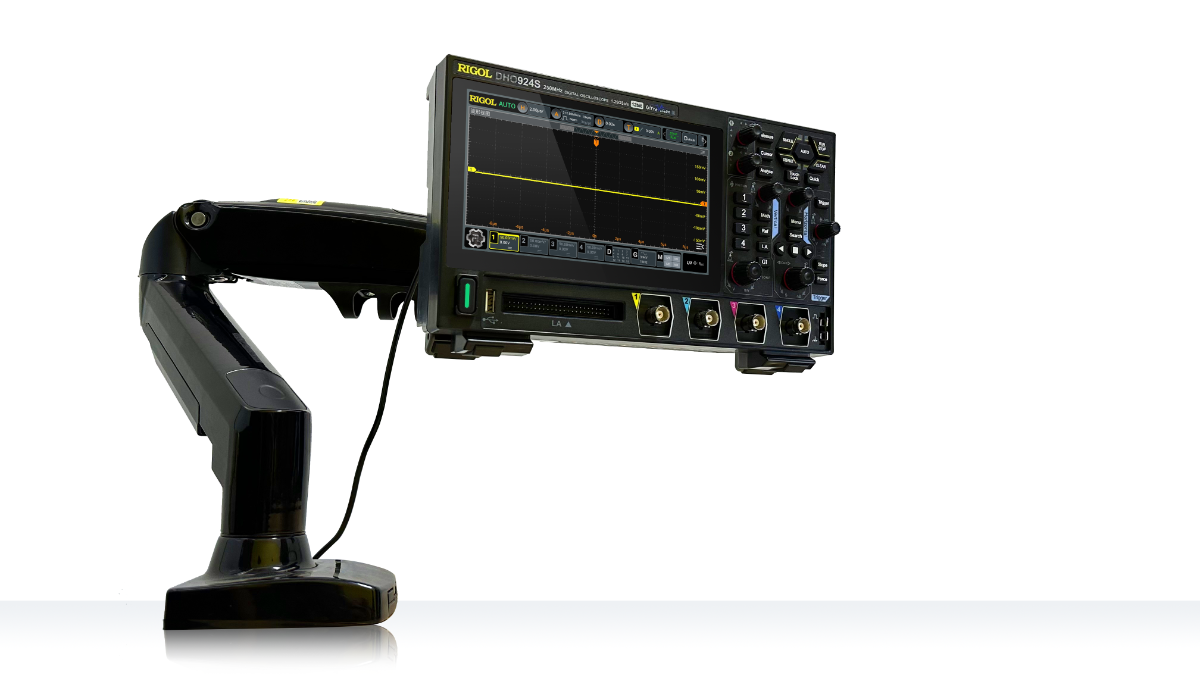

Sleek Design

The DHO900 series is compact and portable, effectively reducing the burden of carrying equipment for on-site operations. Additionally, it supports VESA standard monitor mounts, making your desktop more organized and saving workspace.

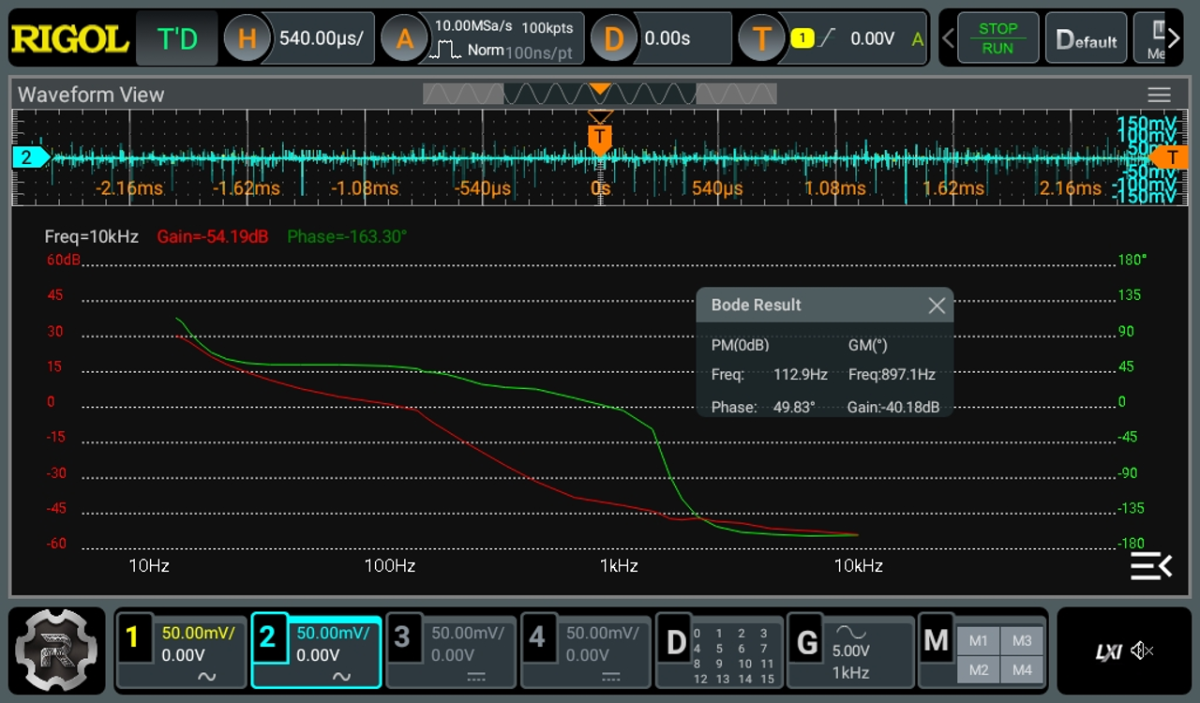

Supports Bode Plot Analysis<br />

The DHO900S is equipped with the Bode diagram loop analysis function, facilitating switch-mode power supply loop analysis and amplitude-frequency response testing of components. This advanced feature enhances the device's capabilities, allowing for comprehensive analysis and optimization of power supply systems and component performance.

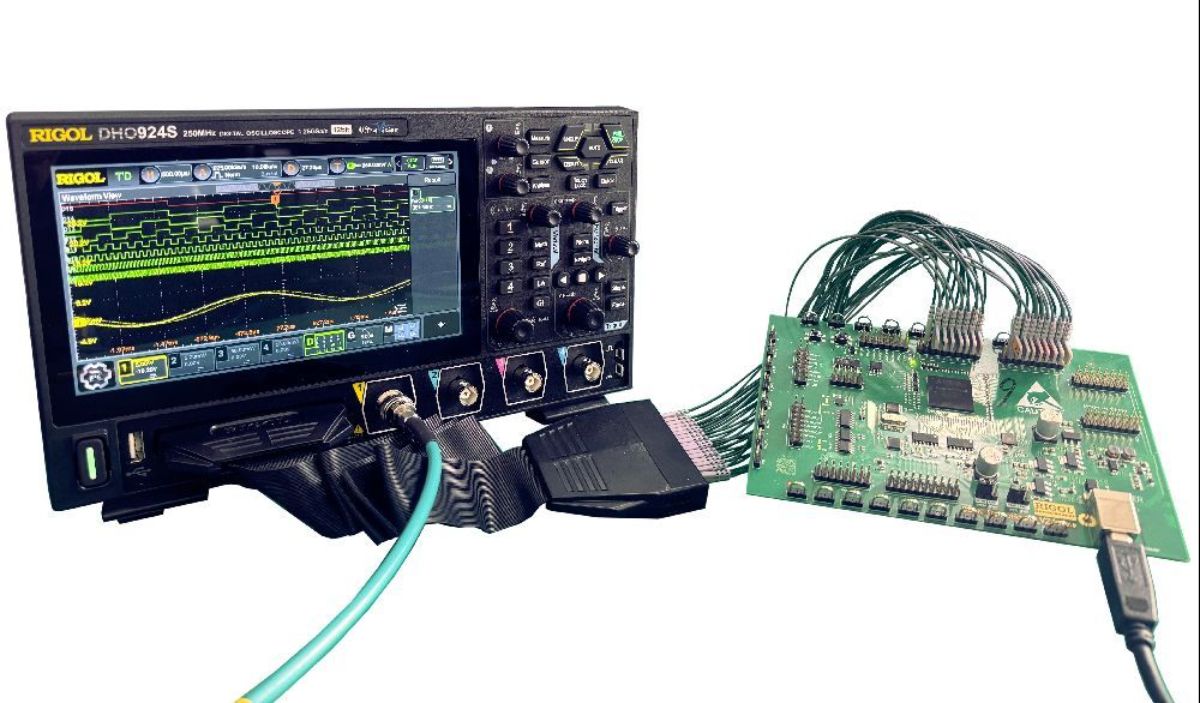

Standard Digital Channels

The entire DHO900 series comes standard with digital channels, which, when paired with the PLA2216 logic analysis probe (purchased separately), enables digital signal analysis. This solves the problem of simultaneous analog and digital signal debugging needs in electronic design.
