Name: Rigol DS1054Z 50MHz 4CH Digital Storage Oscilloscope
Brand: Rigol
SKU: DS1054Z
Price: 1265.00 NZD
Availability: InStock

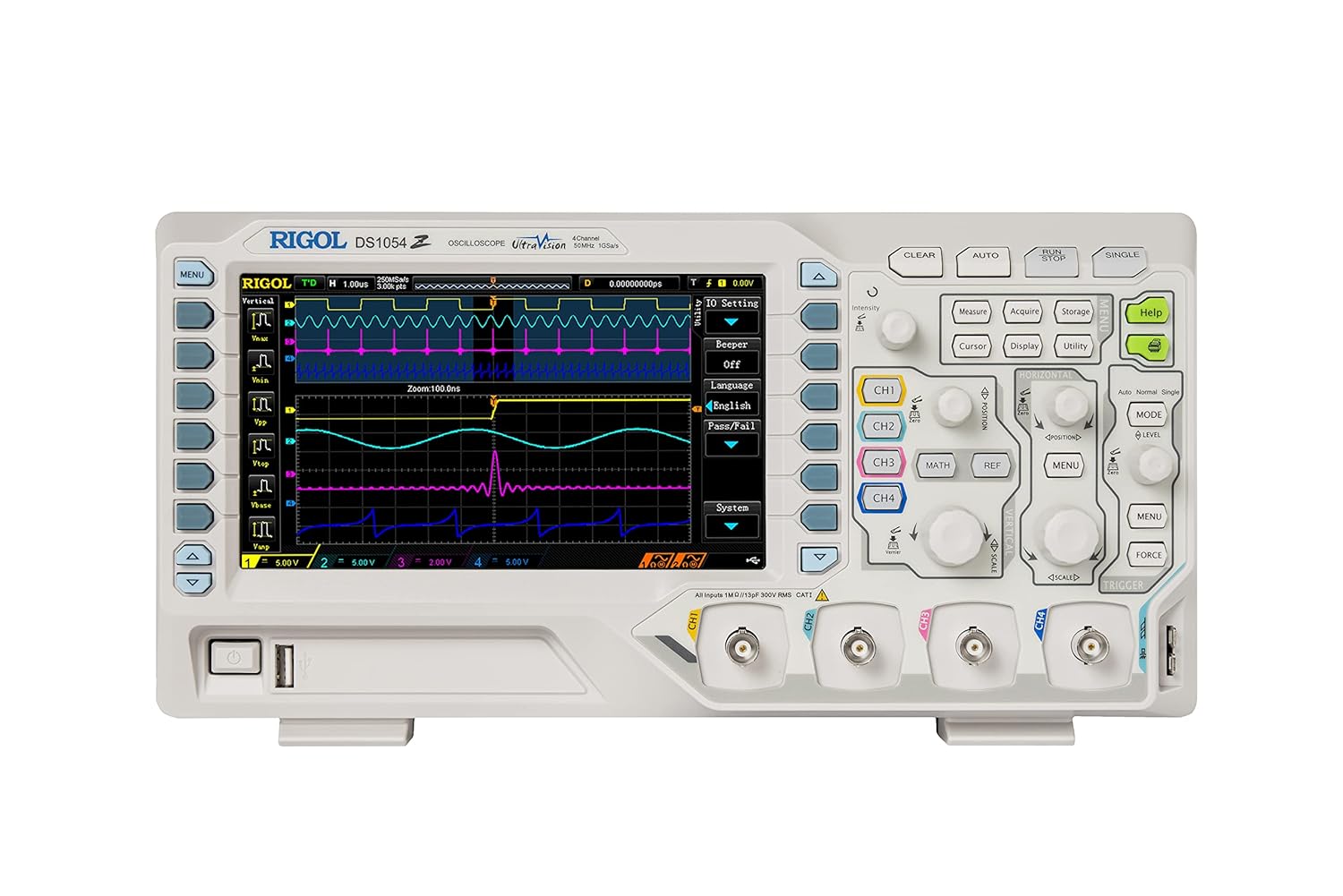

Rigol DS1054Z 50MHz 4CH Digital Storage Oscilloscope

Rigol DS1054Z 50MHz 4CH Digital Storage Oscilloscope - Image 3

Rigol DS1054Z 50MHz 4CH Digital Storage Oscilloscope - Image 4

Buy it now

$1,100.00 excl. GST

$1,265.00 incl. GST

SKU: DS1054Z Categories: Oscilloscopes, Test & Measurement Tag: NZ Stock Only Brand: Rigol

Compare Our Oscilloscopes!

Shipped Nationwide

In Stock in NZ

Buy locally and get piece of mind that you're getting the correct NZ product and local support.

When will I receive it? 2 - 3 days sent via NZ Post (estimated lead time - same day shipping before 3pm)

Description

Rigol DS1054Z Digital Storage Oscilloscope

The Rigol DS1054Z delivers exceptional performance and value for a 4-channel digital storage oscilloscope.
Designed for service departments, educational labs, and electronic engineers, it combines deep memory, fast capture rate,
and Rigol’s renowned UltraVision display technology.

Key Features

50 MHz bandwidth, 4 channels
1 GS/s real-time sampling rate
12 Mpts memory depth (standard)
UltraVision multi-level intensity grading display
Waveform capture rate up to 30,000 wfms/s
Record and playback up to 60,000 frames (optional)
Low noise floor; dynamic range from 1 mV/div to 10 V/div
Optional serial bus triggering and decoding (RS-232, I²C, SPI)
7″ WVGA (800×480) color display with intensity grading
Connectivity: LAN (LXI), USB host & device, AUX output

Warranty:
3 years Limited Warranty.
Exact RIGOL warranties can be verified here.

Bandwidth	50 MHz
Channels	4
Real-Time Sample Rate	1 GS/s
Memory Depth	12 Mpts
Waveform Capture Rate	Up to 30,000 wfms/s
Vertical Sensitivity	1 mV/div to 10 V/div
Display	7″ WVGA (800×480) color display
Connectivity	USB host/device, LAN (LXI Core 2011), AUX out
Trigger & Decode	Optional RS-232, I²C, SPI serial bus decoding
Display Technology	UltraVision intensity-graded waveform display

Additional information

Weight	3 kg
Dimensions	18 × 33 × 13 cm
Bandwidth	50Mhz
Channels	4
Power Source	Mains
Waveform Generator	No
Max Memory Depth	12 Mpts
Max Sample Rate	1 GSa/s
Touch Screen	No
