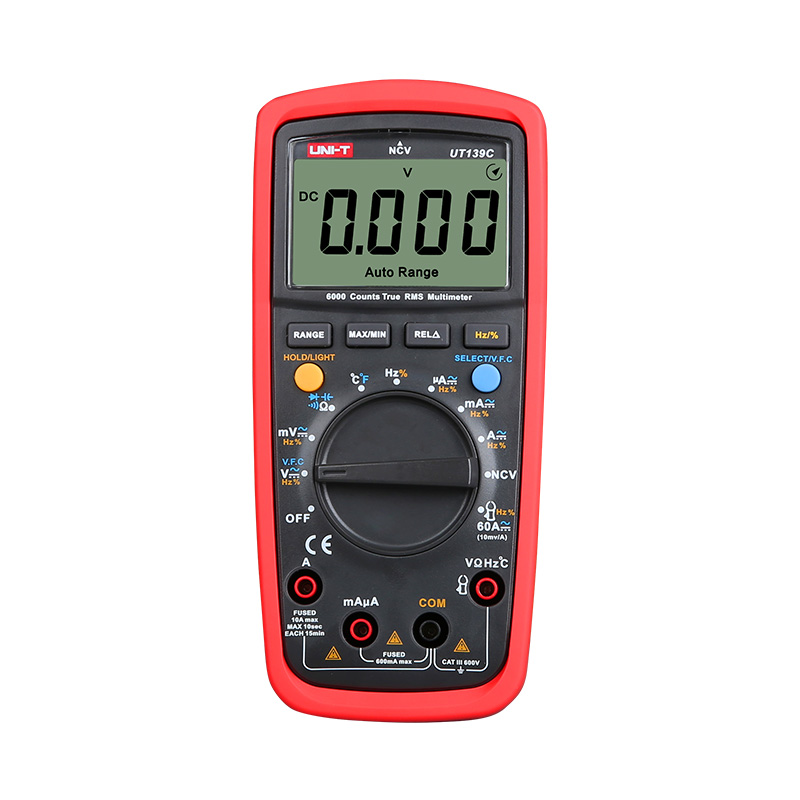

UNI-T UT139C AC/DC Autoranging True RMS Digital Multimeter
Description
UT139 series are CAT III 600V digital multimeters designed for electricians and electrical engineers. Its NCV feature can effectively check electrical status through measuring EM field intensity. Its built-in 31-segment analog bar also gives the user a better visual representation of measurement results.
- MAX/MIN/REL modes
- Data hold, LED backlight, auto power off
- Full range protection (600V)
- True RMS
- NCV (Non-Contact Voltage)
- Auto/manual ranges selectable
| DC Voltage (V) | 600V | ±(0.5%+2) |
| AC Voltage (V) | 600V | ±(0.8%+3) |
| DC Current (A) | 10A | ±(0.7%+2) |
| AC Current (A) | 10A | ±(1%+3) |
| Resistance (Ω) | 60MΩ | ±(0.8%+2) |
| Capacitance (F) | 99.99mF | ±(4%+5) |
| Frequency (Hz) | 10Hz~10MHz | ±(0.1%+4) |
| Temperature (°C) | -40~1000°C | ±(1%+3) |
| Temperature (°F) | -40~1832°F | ±(1.5%+5) |
| Display Count | 6000 | — |
| Auto range / Manual range / True RMS | √ | — |
| Bandwidth (Hz) | 45Hz~1kHz | — |
| NCV / Continuity Buzzer | √ | — |
| Duty Cycle | 0.1%~99.9% | √ |
| Diode Test | Around 3V | — |
| LPF / LoZ (ACV) | — | — |
| Analog Bar | — | — |
| Power | 1.5V battery (R6) × 2 | |
| Display | 58mm × 36mm | |
| Product Color | Red and grey | |
| Net Weight | 354g | |
| Product Size | 170mm × 80mm × 48mm | |
| Standard Accessories | Batteries, test leads, temperature probe | |
| Individual Packing | Box, English manual | |
| Quantity per Carton | 20pcs | |
| Carton Size | 450mm × 330mm × 340mm | |
| Carton Gross Weight | 12.2kg | |
| Optional Accessory | Current Sensor AC/DC 40A | |
Additional information
| Weight | 0.35 kg |
|---|---|
| Dimensions | 8 × 17 × 5 cm |
