Rigol DG852 Pro Function/Arbitrary Waveform Generator 50MHz 2Channel

Description

The DG800 Pro Series is a dual-channel function/arbitrary waveform generator supporting function, arbitrary, pulse, harmonic, modulation, noise generation, and frequency counting. It provides up to 50 MHz output frequency, 625 MSa/s sampling, 16-bit vertical resolution, and waveform rise times as low as 3 ns.

Features

• 625 MSa/s maximum sampling rate with 16-bit vertical resolution
• 7-inch colour touchscreen for parameter setting and simultaneous dual-channel waveform viewing and editing
• USB Type-C power input for convenient portable operation
• Square-wave output up to 40 MHz and adjustable-edge pulse output up to 25 MHz, with rise times as low as 3 ns
• Output jitter as low as 200 ps RMS
• Supports AM, FM, PM, ASK, FSK, PSK, PWM, SUM and other modulation functions
• Sequence function supporting up to 64 waveform events and 256 repetitions
• Harmonic generation up to the 20th harmonic
• Built-in 7-digit, 500 MHz frequency counter with statistical analysis
• 2 Mpts arbitrary waveform length, expandable to 8 Mpts

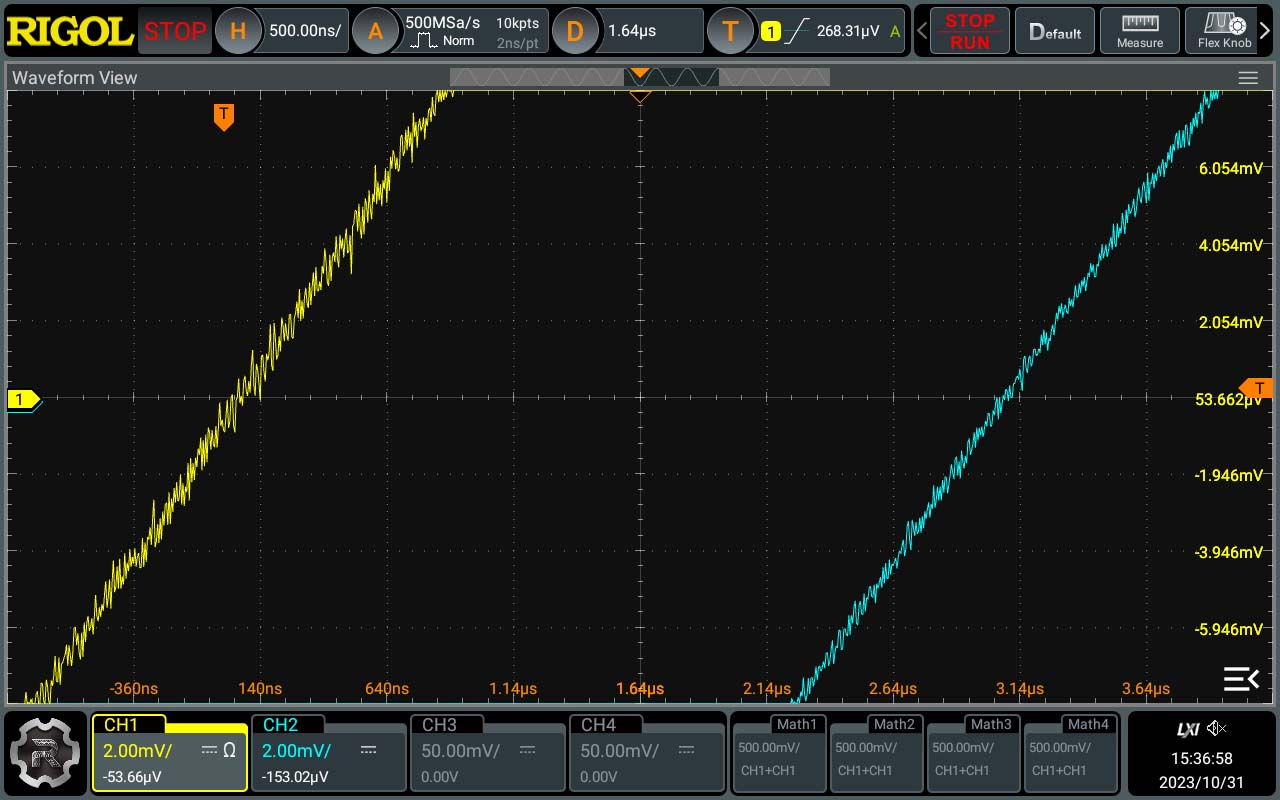

Outstanding accuracy

625 MSa/s maximum sampling rate and 16-bit vertical resolution provide accurate waveform output.

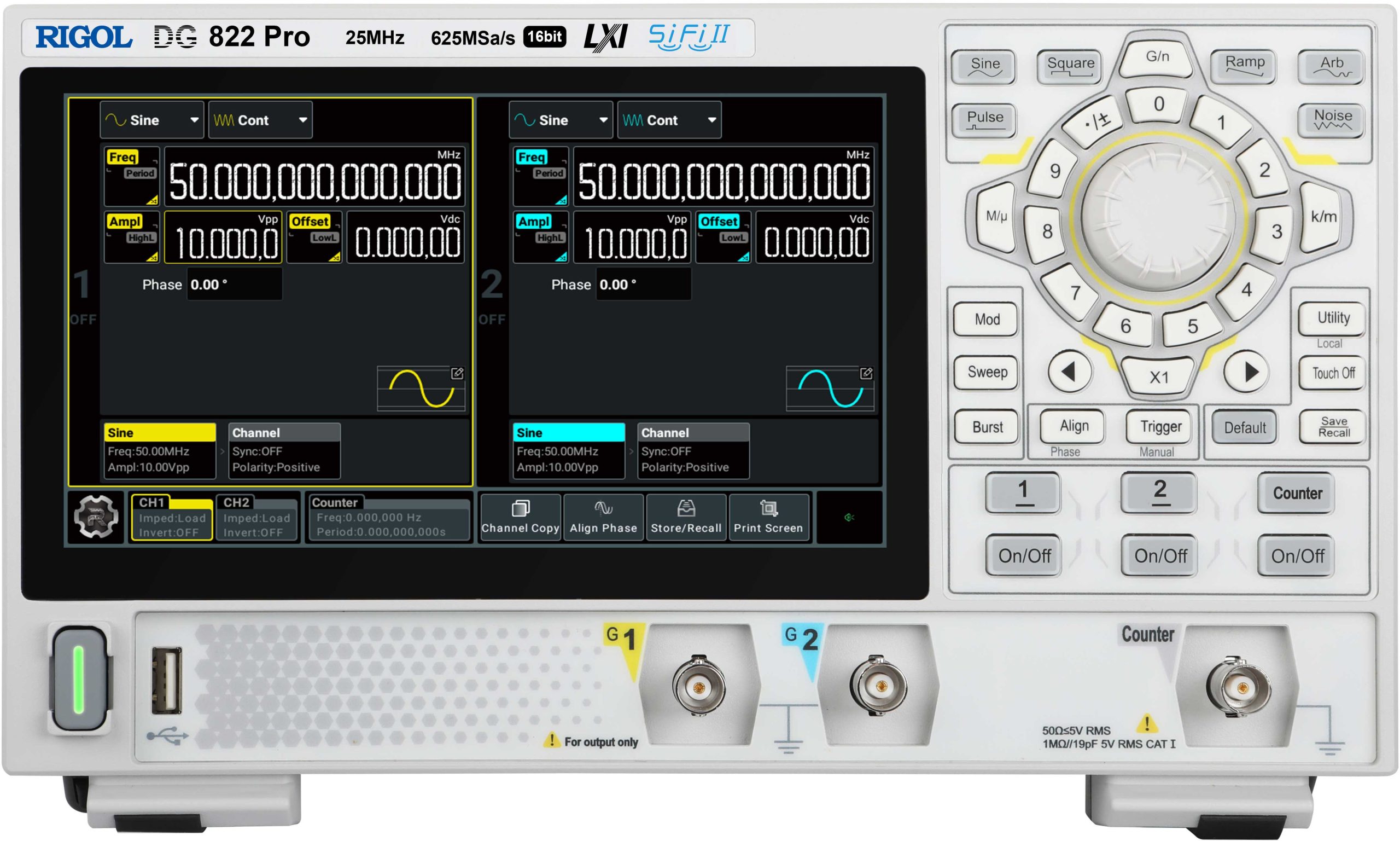

7-inch color touch screen display

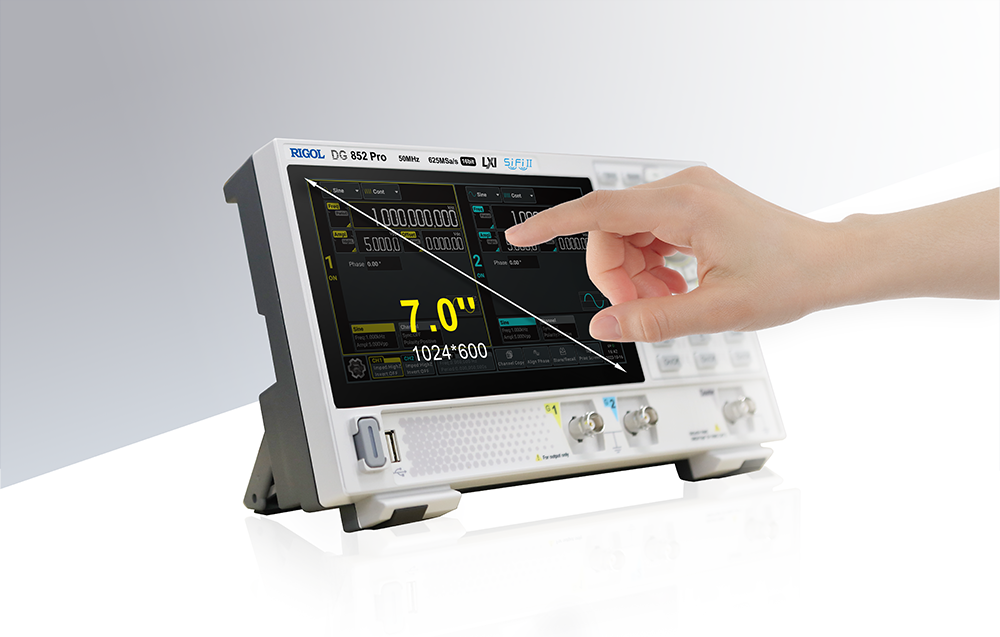

The 7-inch colour touchscreen provides convenient parameter setting and simultaneous viewing and editing of dual-channel waveforms.

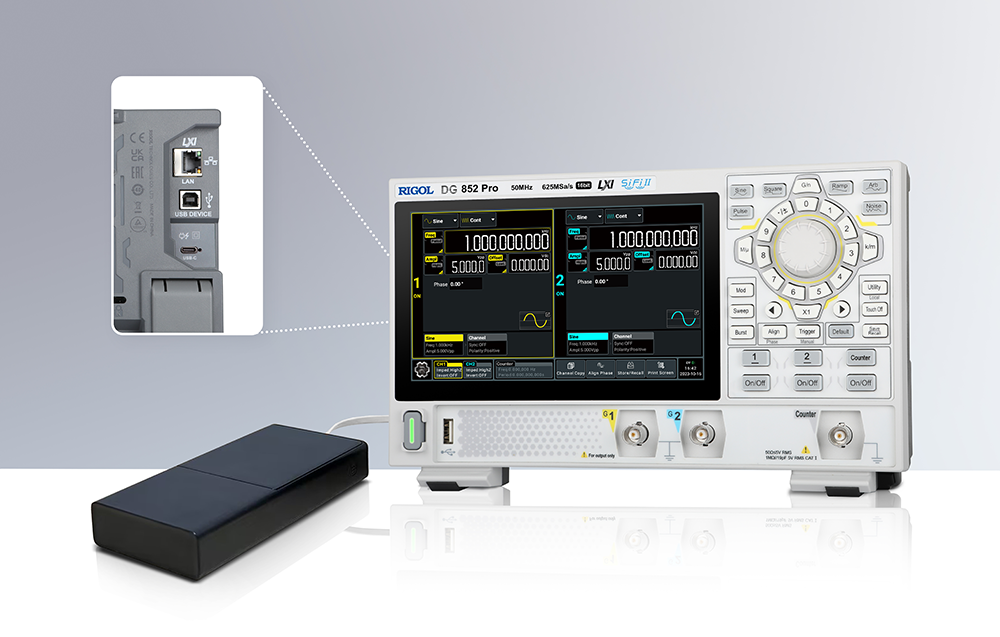

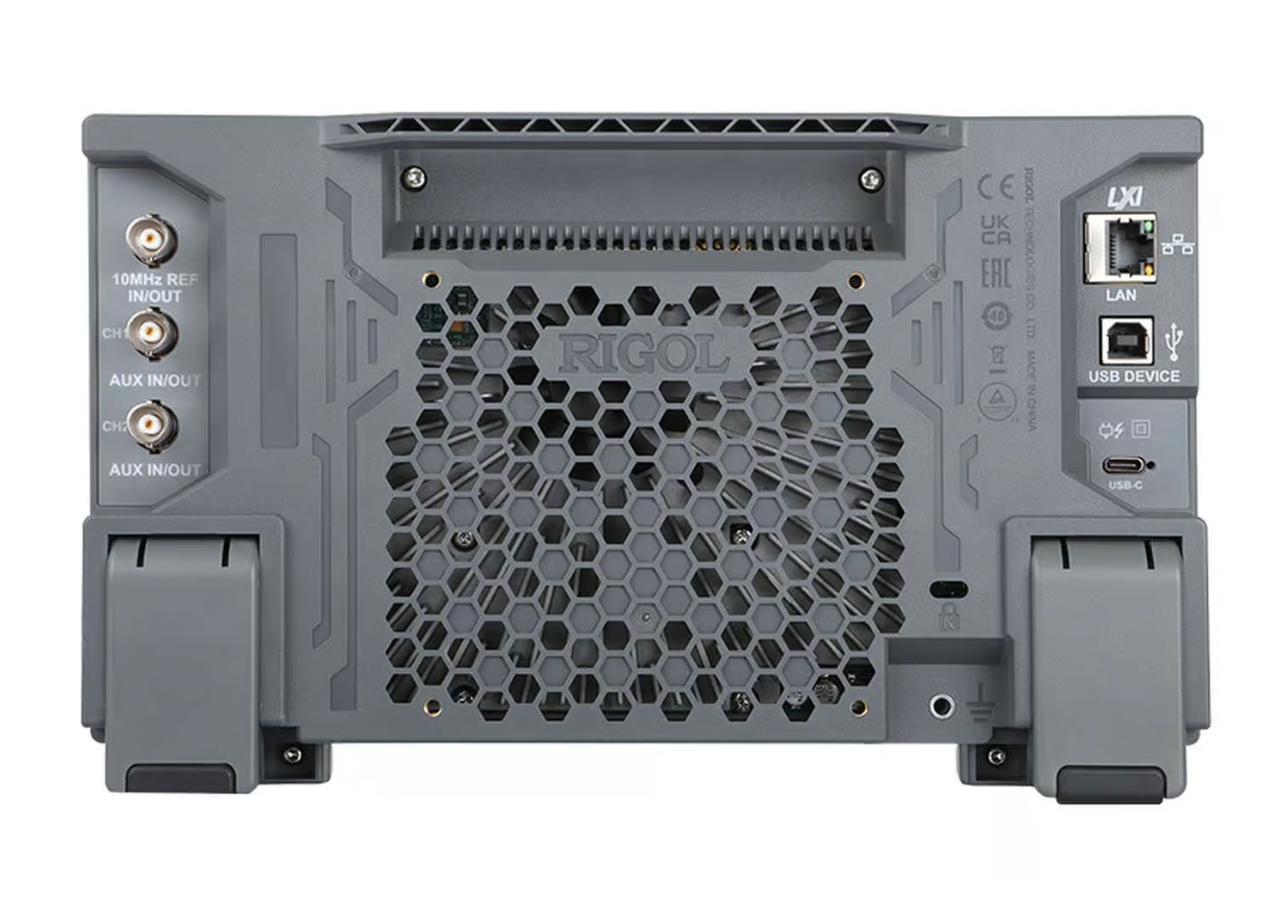

Equipped with Type-C connector

The Type-C connector allows the DG800 Pro to be powered by a portable power supply for convenient on-site testing.

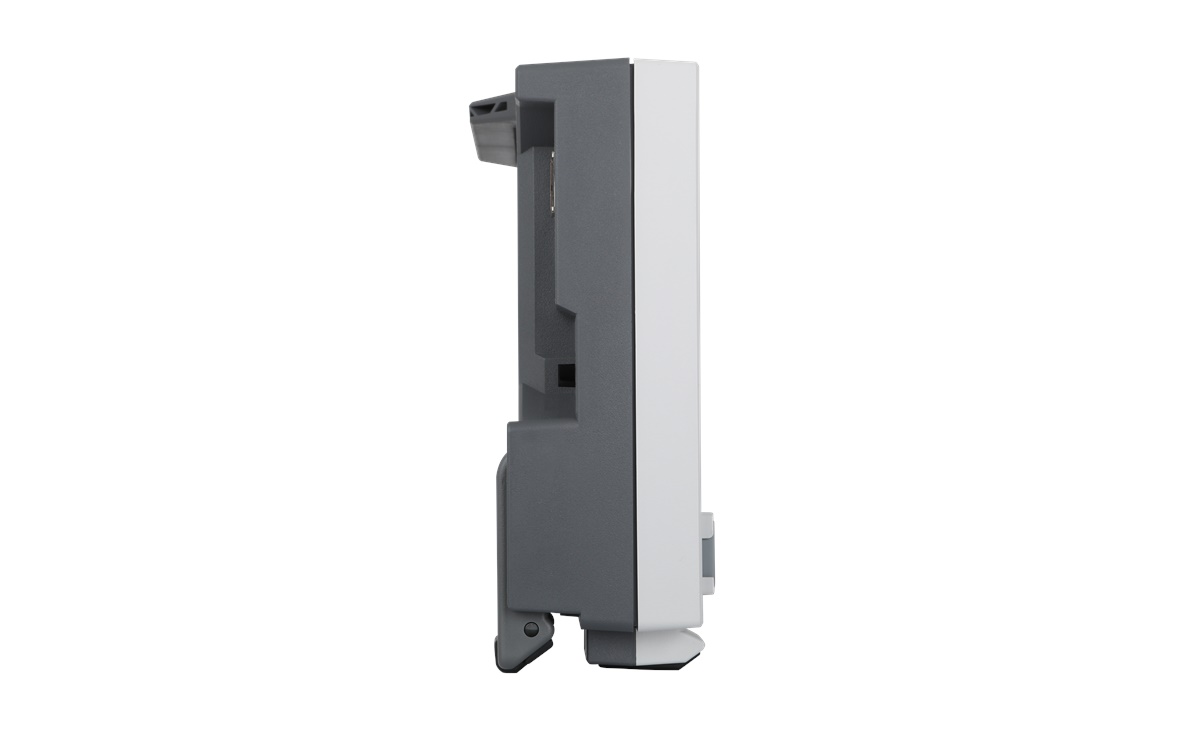

Dexterous appearance

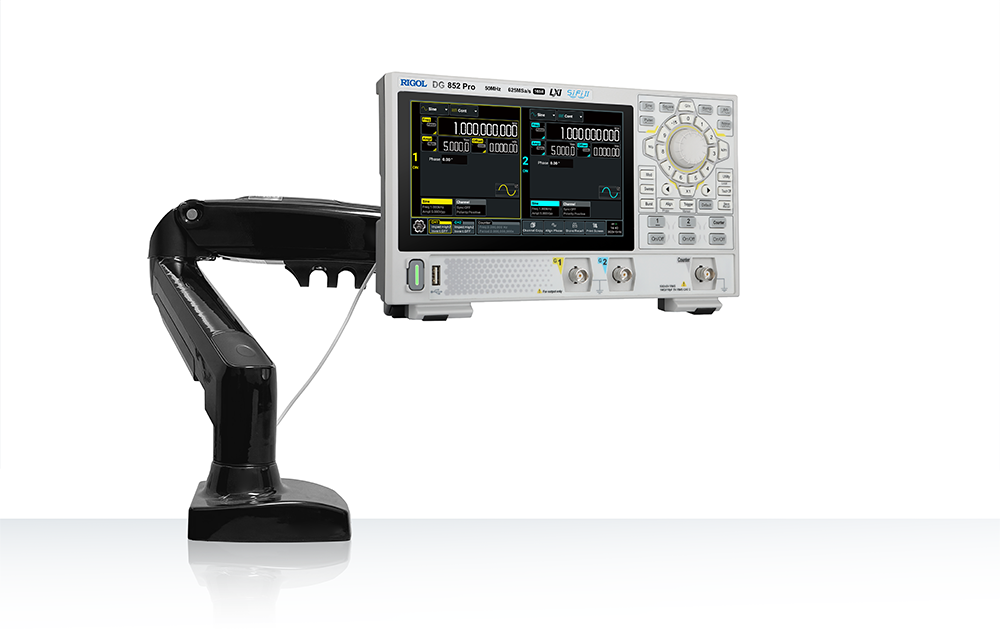

The compact design supports use with a standard monitor stand to save workbench space. Dimensions are 266 mm × 165 mm × 63 mm, with a weight of 1.78 kg.

Fast rising edge

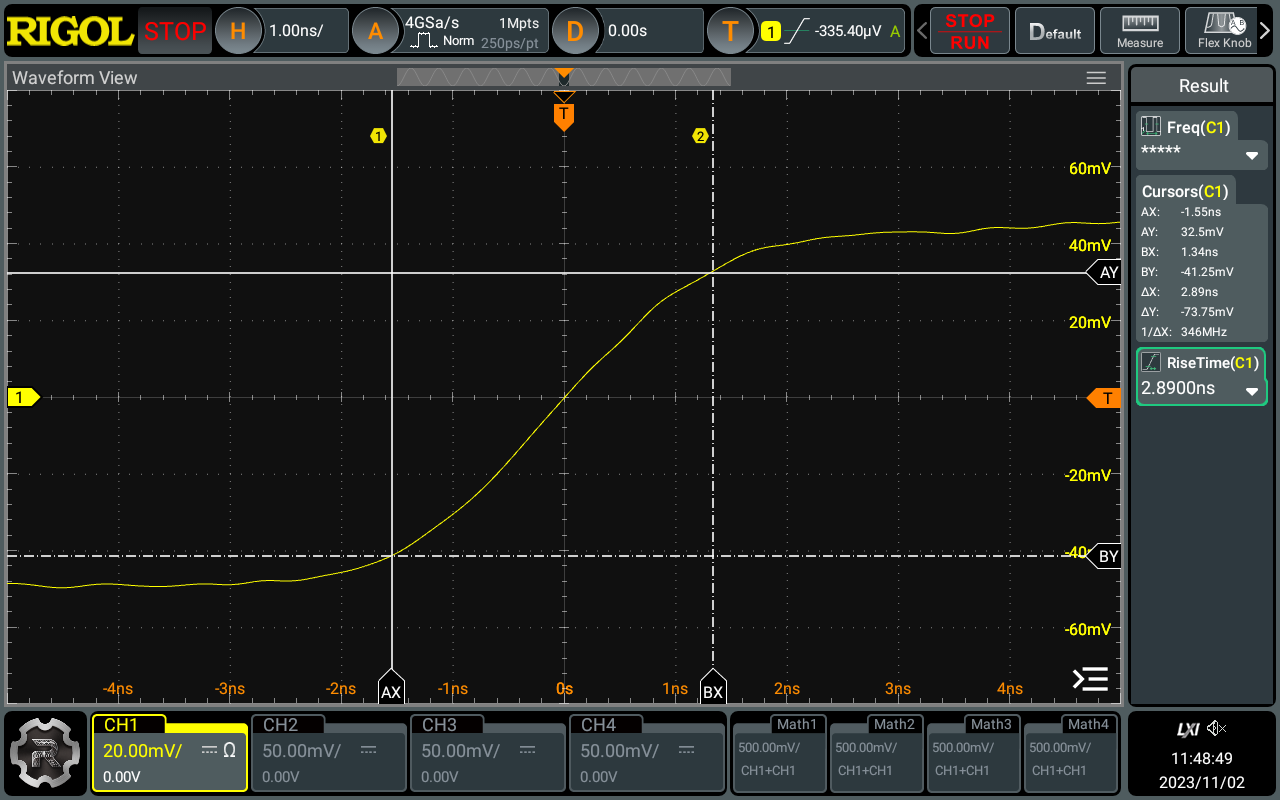

Supports 40 MHz square-wave and 25 MHz adjustable-edge pulse-wave output, with waveform rise time as low as 3 ns.

Ultra-low jitter

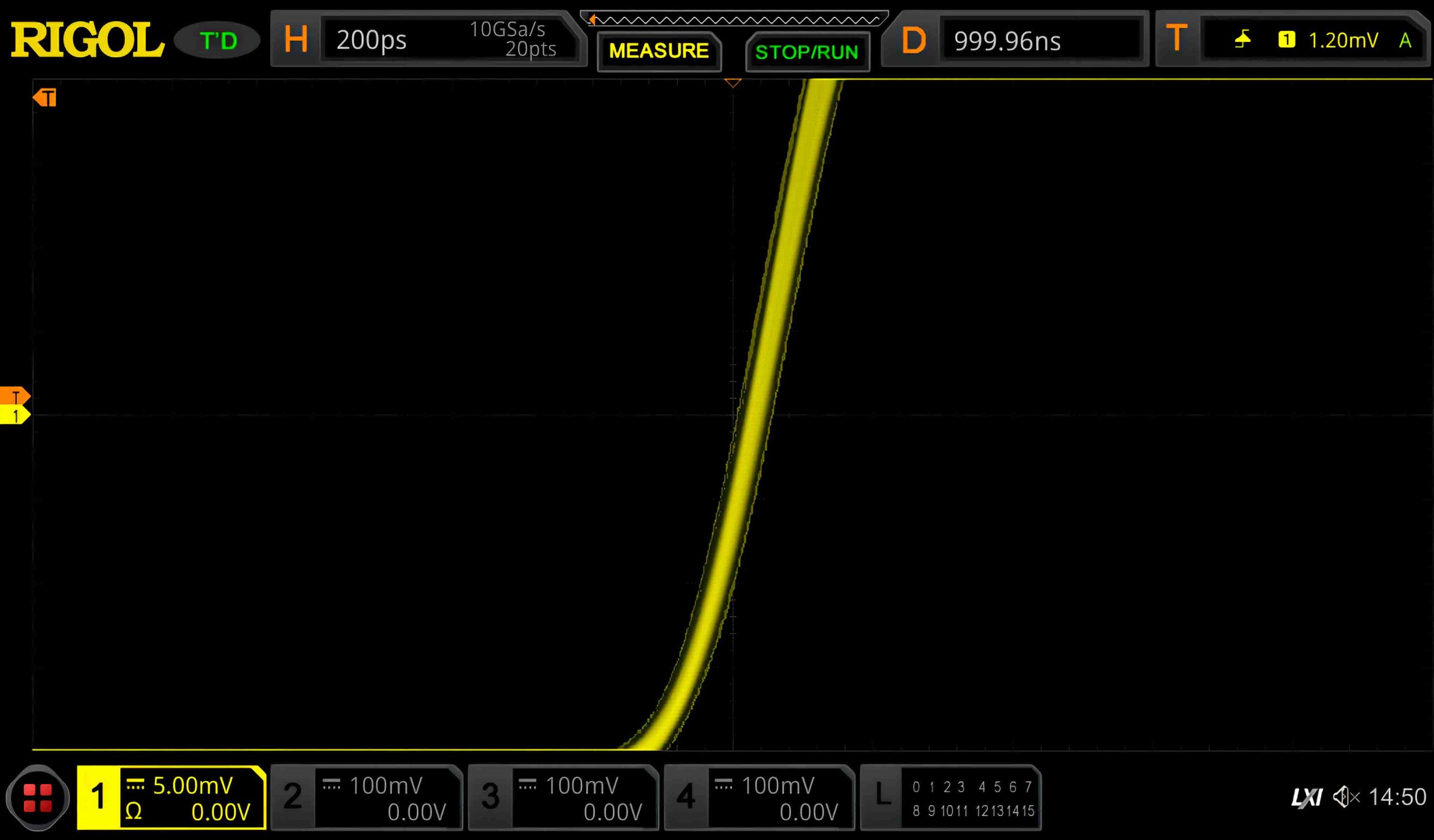

SIFI II technology generates arbitrary waveforms point by point with precisely adjustable sampling rate. Output signal jitter is as low as 200 ps RMS.

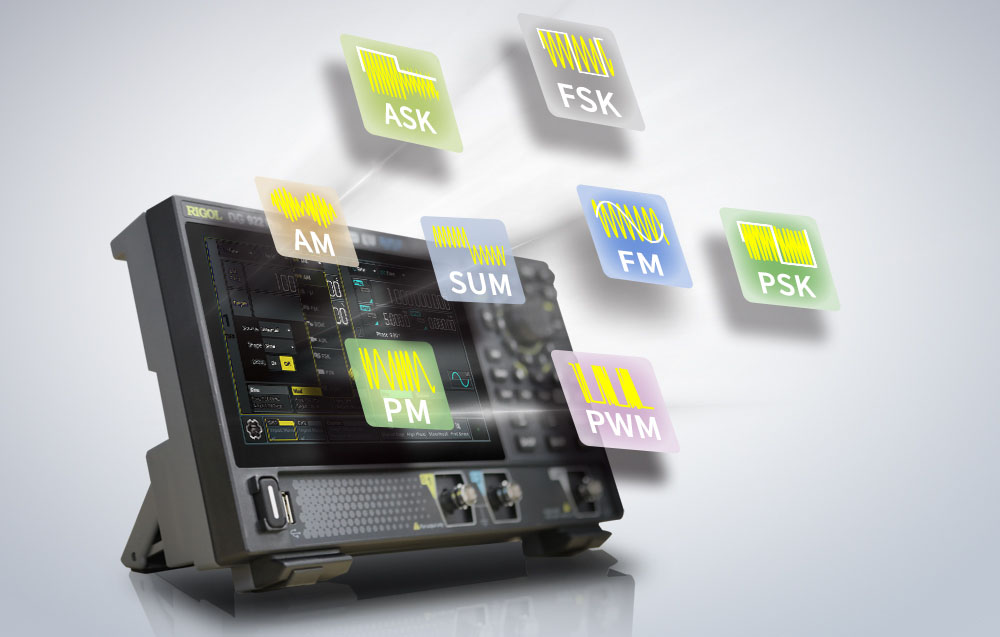

Rich modulation functions

Supports AM, FM, PM, ASK, FSK, PSK, PWM, SUM and other modulation functions for applications including communications, motor control and switching power supplies.

Sequence function

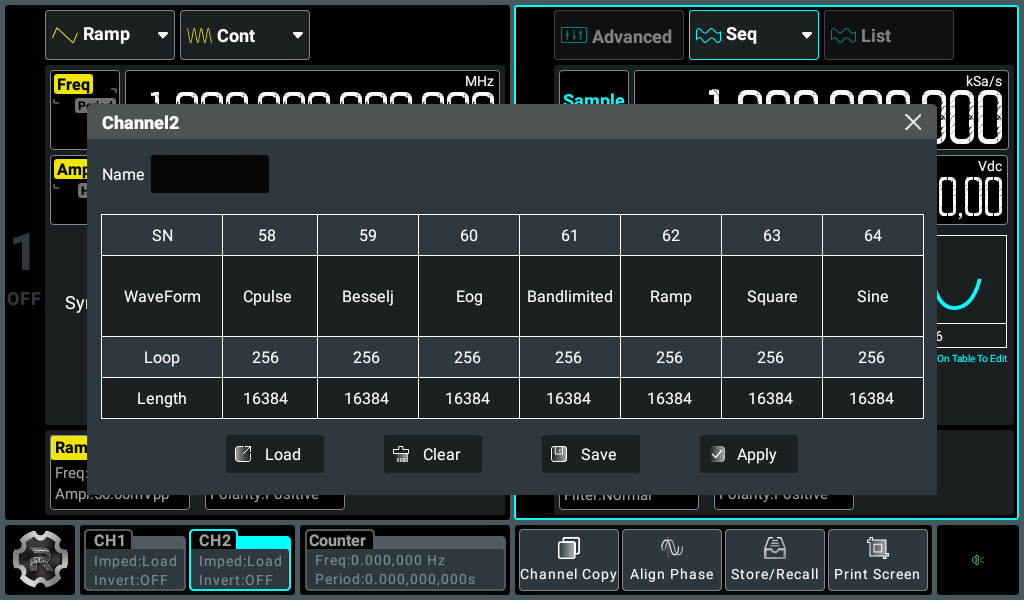

Supports up to 64 waveform events and 256 repetitions, allowing multiple test cases to be loaded and executed sequentially with seamless switching.

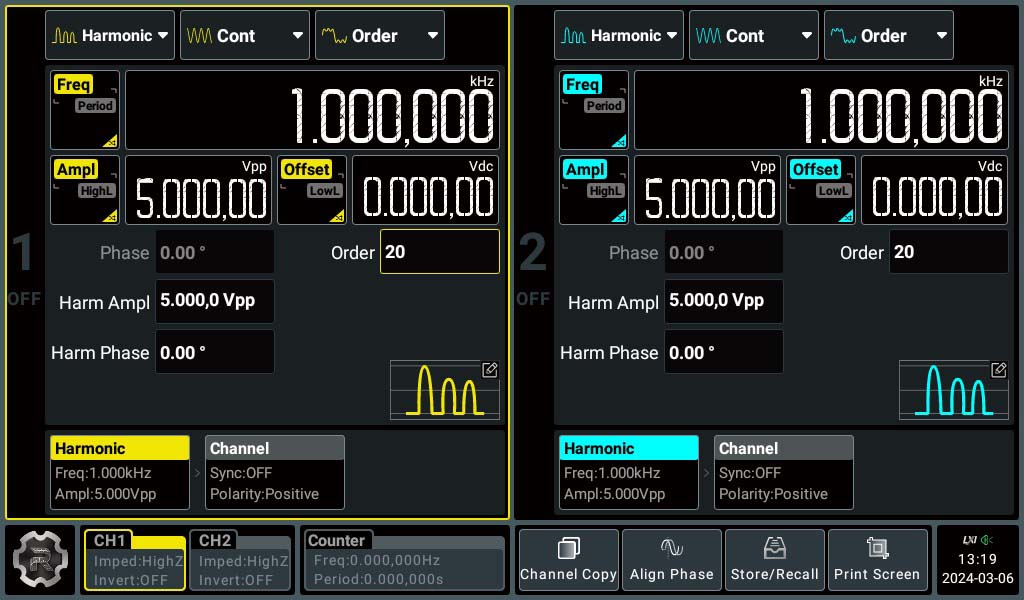

Maximum 20th harmonic generation function

Supports harmonic generation up to the 20th harmonic for performance testing of high-order filters, amplifiers and other devices.

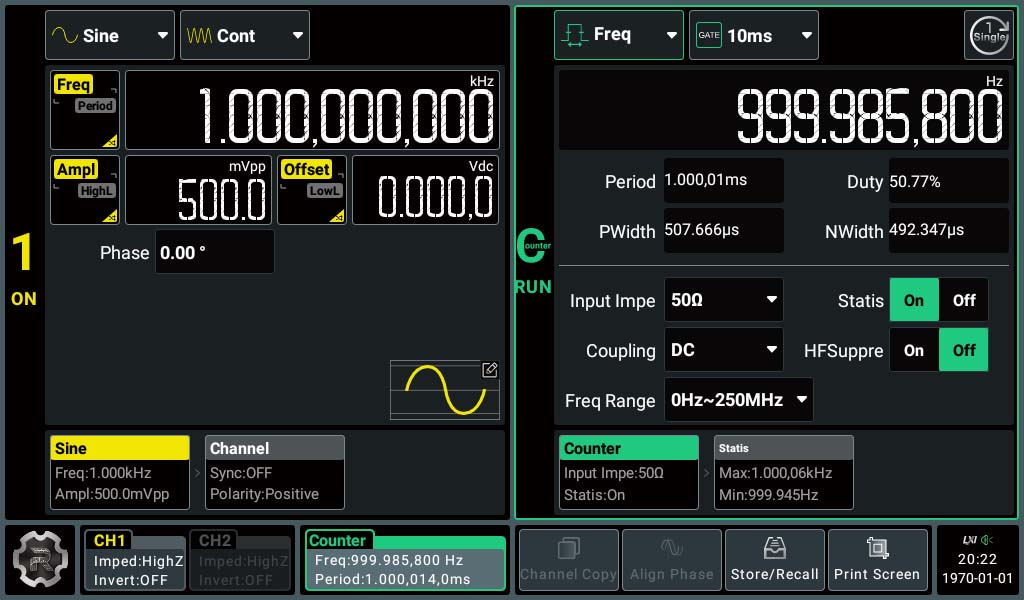

High resolution frequency meter

The built-in 7-digit, 500 MHz frequency counter measures frequency, period, duty cycle, and positive and negative pulse width from external input signals, with statistical analysis of measurement results.
