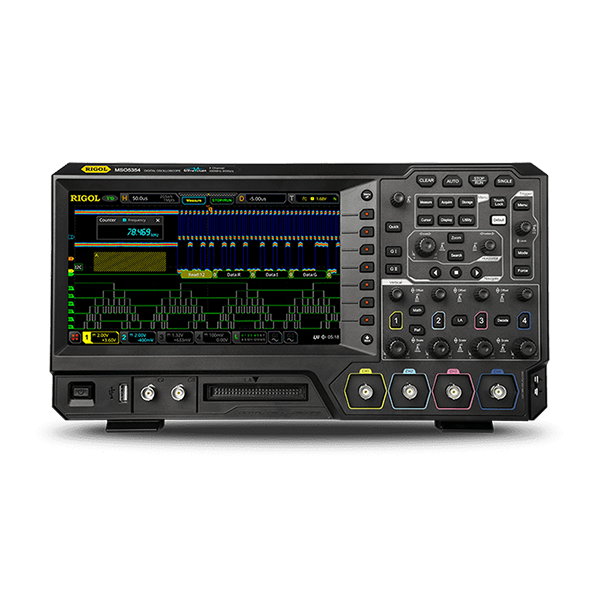

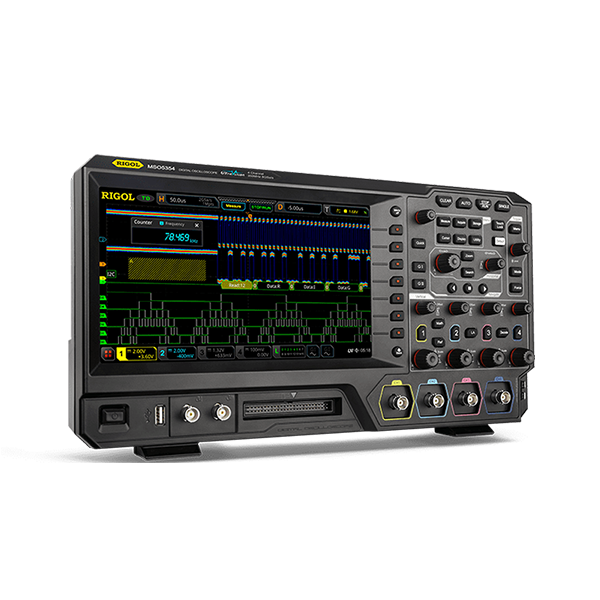

Rigol MSO5074 4 Channel, 70MHz, 8GSa/s Mixed Signal Oscilloscope
Buy it now
$3,662.41 incl. GST
Shipped Nationwide
Back in stock in 5 days!
Staff Review
This is a best-in-class mixed signal oscilloscope, with it’s huge resolution of 8GSa/s and many features such as oscilloscope, spectrum analyser, logic analyser etc, this scope offers unprecendented value for general purpose debug and analysis applications.
Video
Description
Rigol MSO5074 70MHz 4-Channel Mixed Signal Oscilloscope – High-performance digital oscilloscope with 8 GSa/s sampling rate, 100Mpts (upgradable to 200Mpts) memory depth, 16 digital channels, and a 9″ capacitive touch screen. Perfect for precise waveform capture, serial decoding, and advanced electronics debugging.

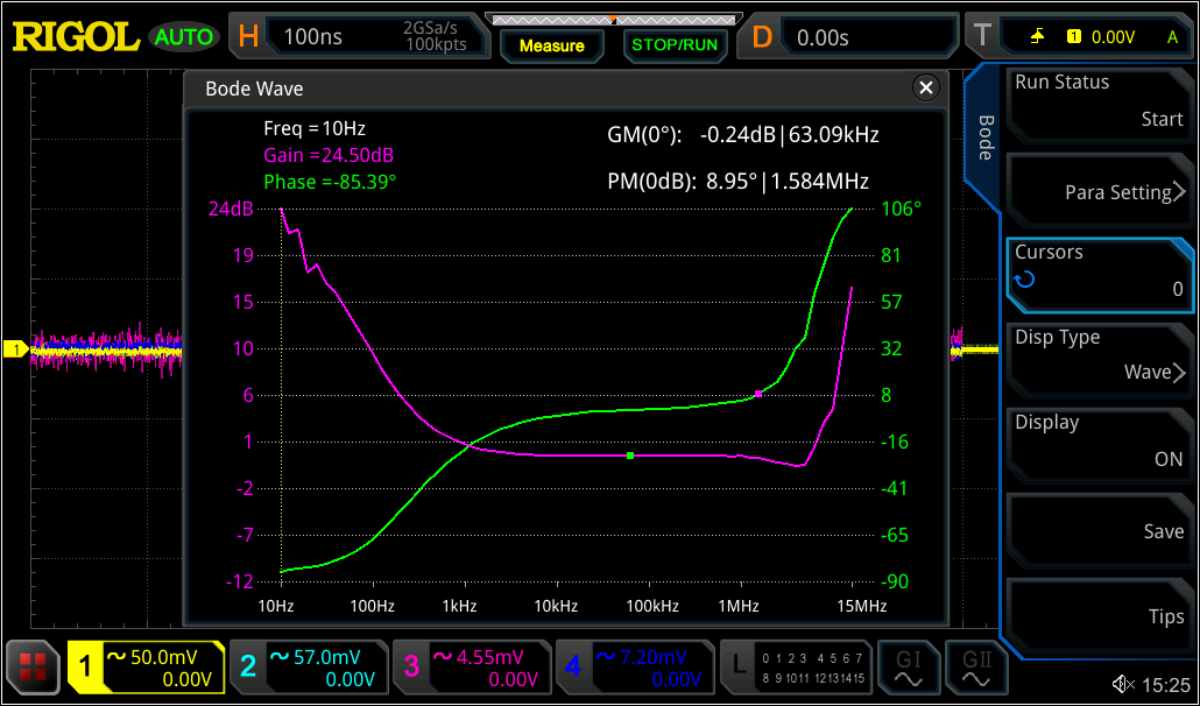

Bode Plot: Switching Power Supply Loop Analysis
The RIGOL MSO5000 Series Oscilloscope comes with a Bode plot function, which intuitively shows test curve and data. This can help engineers quickly determine system stability by analyzing parameters such as phase margin and gain margin.

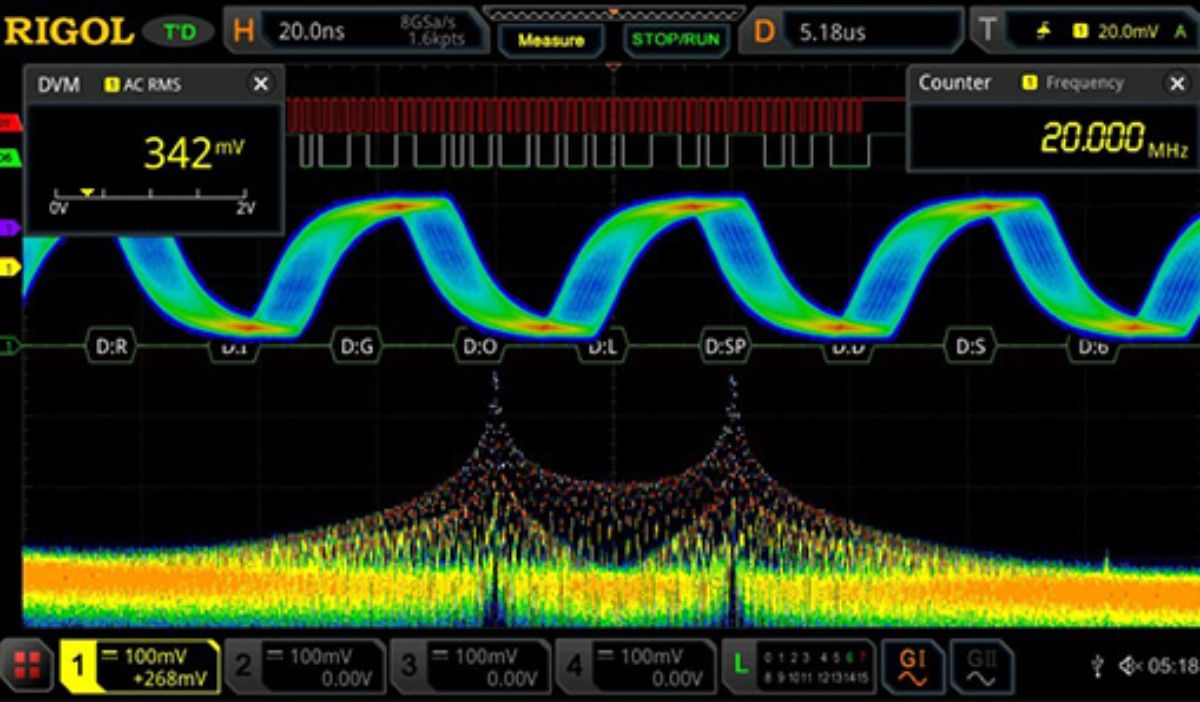

7 in 1 Product Design
It integrates 7 independent instruments, including an oscilloscope, a 16 channel logic analyzer, a spectrum analyzer, an arbitrary wave generator, a digital voltmeter, a high-precision frequency meter and accumulator, and a protocol analyzer.

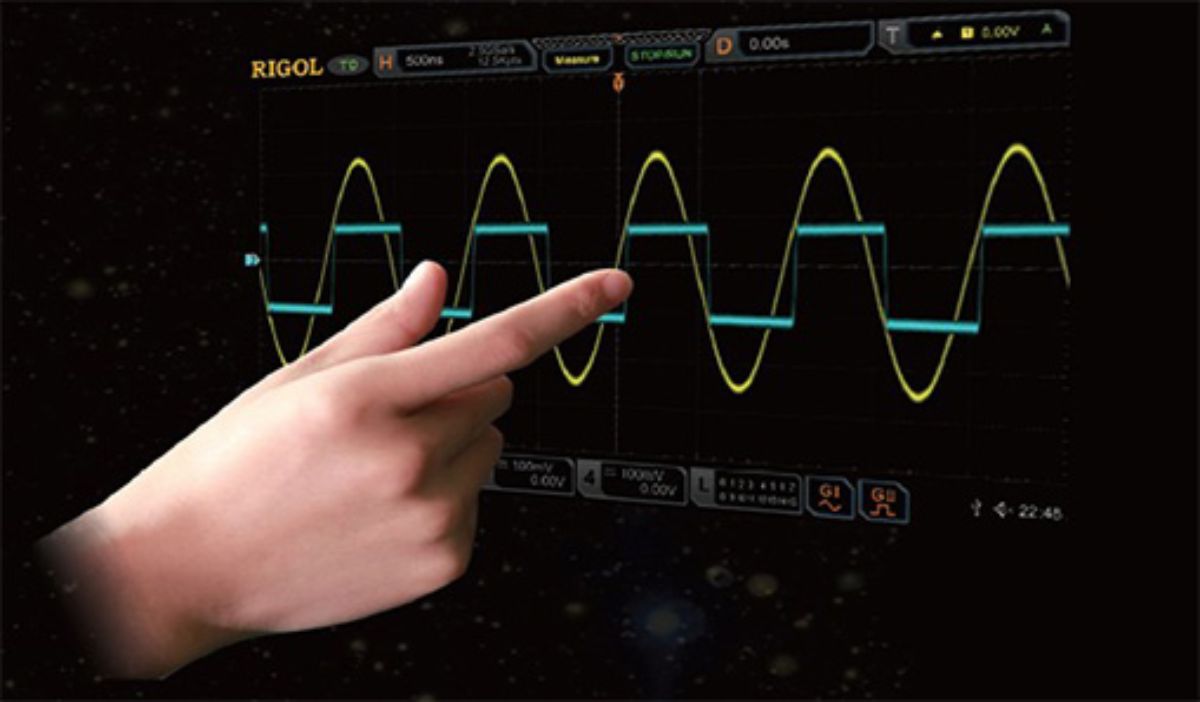

9 inch Multi Touch Capacitive Screen
9-inch multi touch capacitive screen, supporting a variety of gesture operations, providing users with the most optimized interaction experience

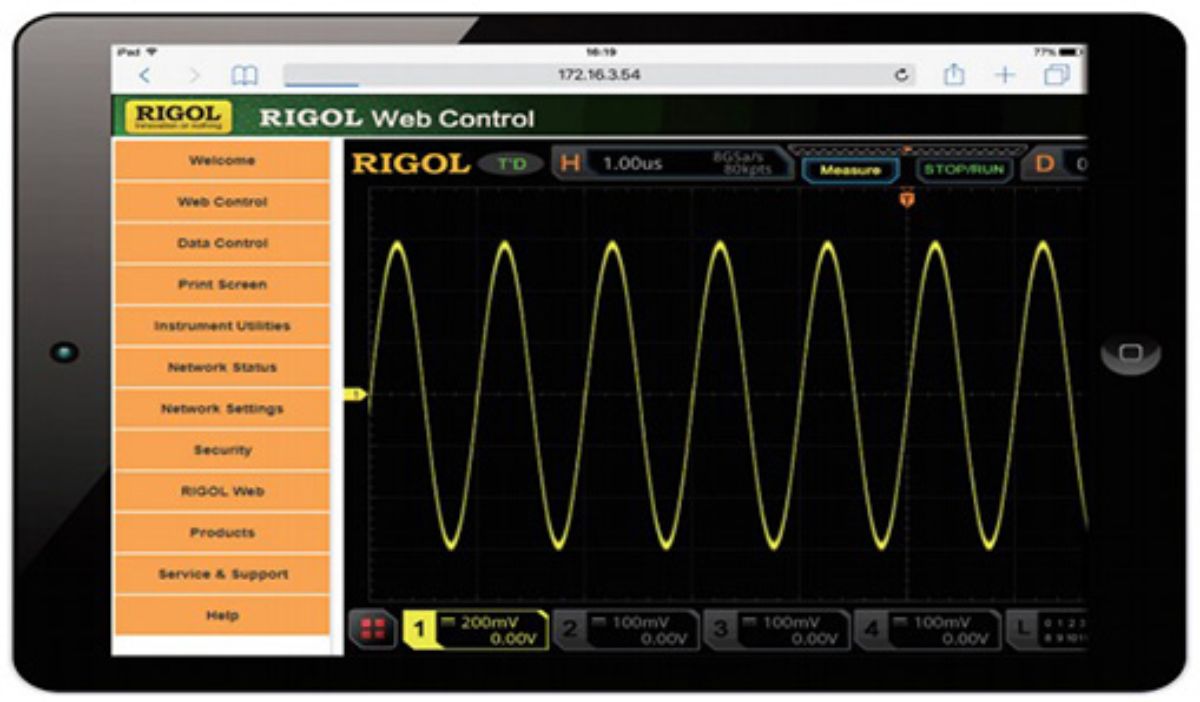

Convenient Web Control Remote Control
The user only needs to input the IP address of the oscilloscope in the address bar of the web browser, then they can open the web control control software and easily handle remotely controlling the scope.

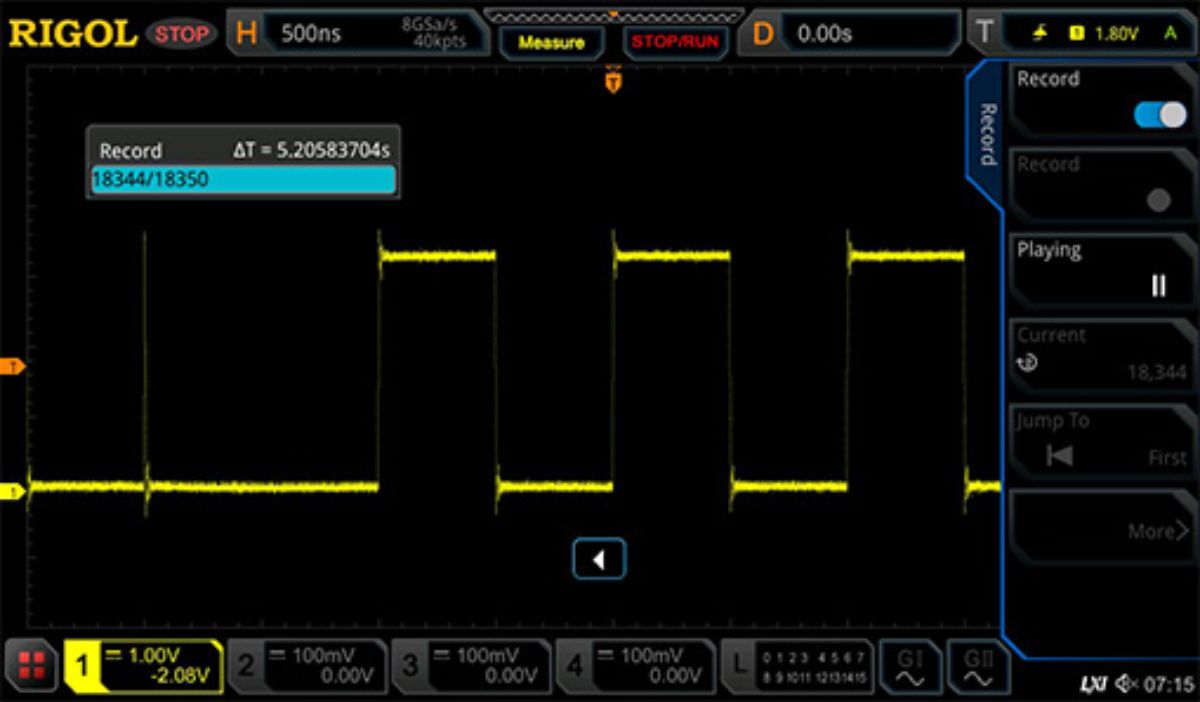

Supports Up to 450000 Frames of Hardware Waveform Recording
The hardware waveform recording function adopts the segmented storage technology, which can selectively capture and store the user's concerned signal by setting the trigger conditions, and mark the time on the signal, which not only ensures the efficiency of acquisition, but also further expands the total time of waveform observation.

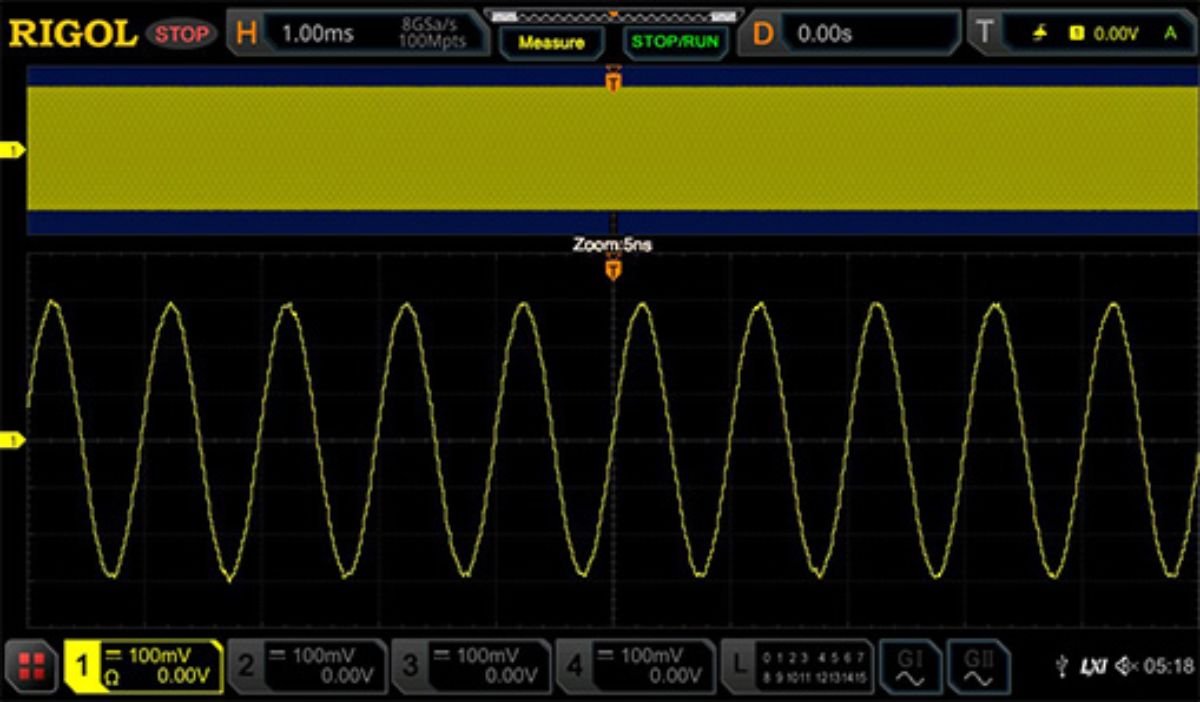

Super High Sampling Bandwidth Ratio
The mso5000 series provides a real-time sampling rate of up to 8 GSa / s at 350 MHz bandwidth, with a sampling bandwidth ratio of about 23 times, which makes it a leader in the oscilloscope products of the same level, and has an ultra long waveform storage depth of 200 mpts.

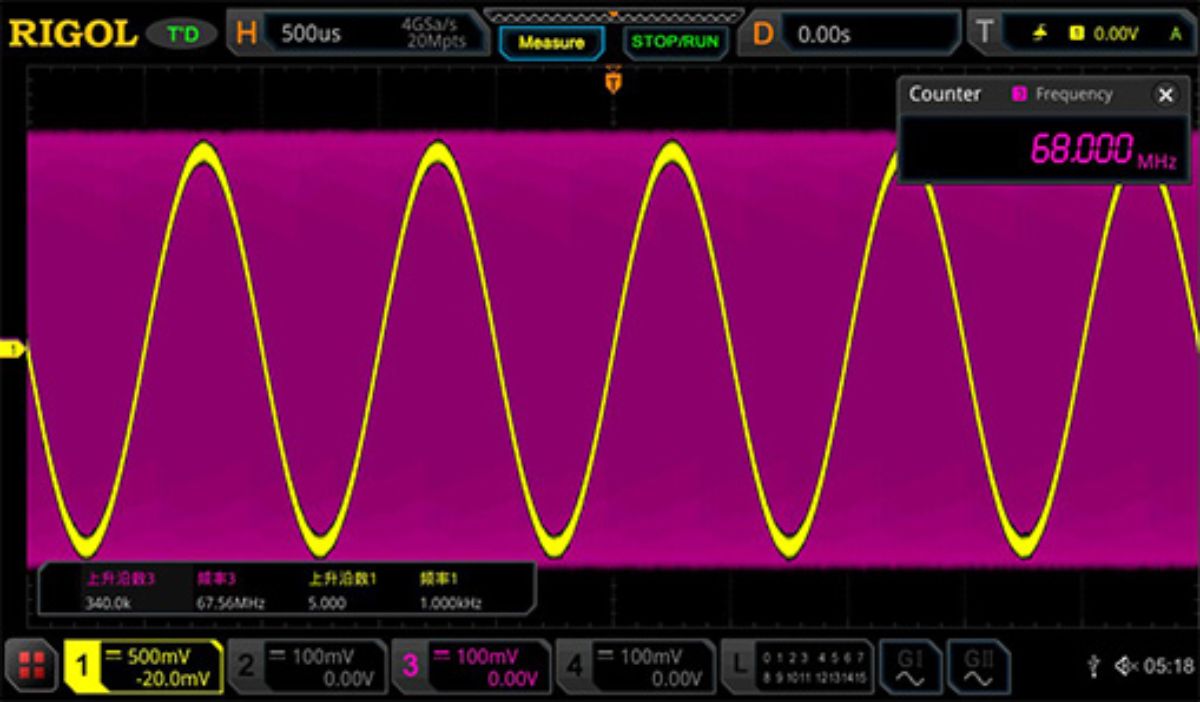

Full Memory Hardware Measurement
At the same time, observe and accurately measure the signals with large frequency difference between the two channels. The full memory hardware measurement can measure the accurate frequency value in the waveform with 340k rising edgesn accurate frequency values from a waveform with 340k rising edges.
Additional information
| Weight | 2.78 kg |
|---|---|
| Dimensions | 26 × 16 × 7 cm |
| Bandwidth | 70MHz |
| Channels | 4 |
| Waveform Generator | Yes |
| Max Memory Depth | 100 Mpts |
| Max Sample Rate | 8 GSa/s |
| Power Source | Mains |
| Touch Screen | Yes |
