Hantek High Impedance Oscilloscope Probe

Description

Hantek High Impedance Oscilloscope Probe

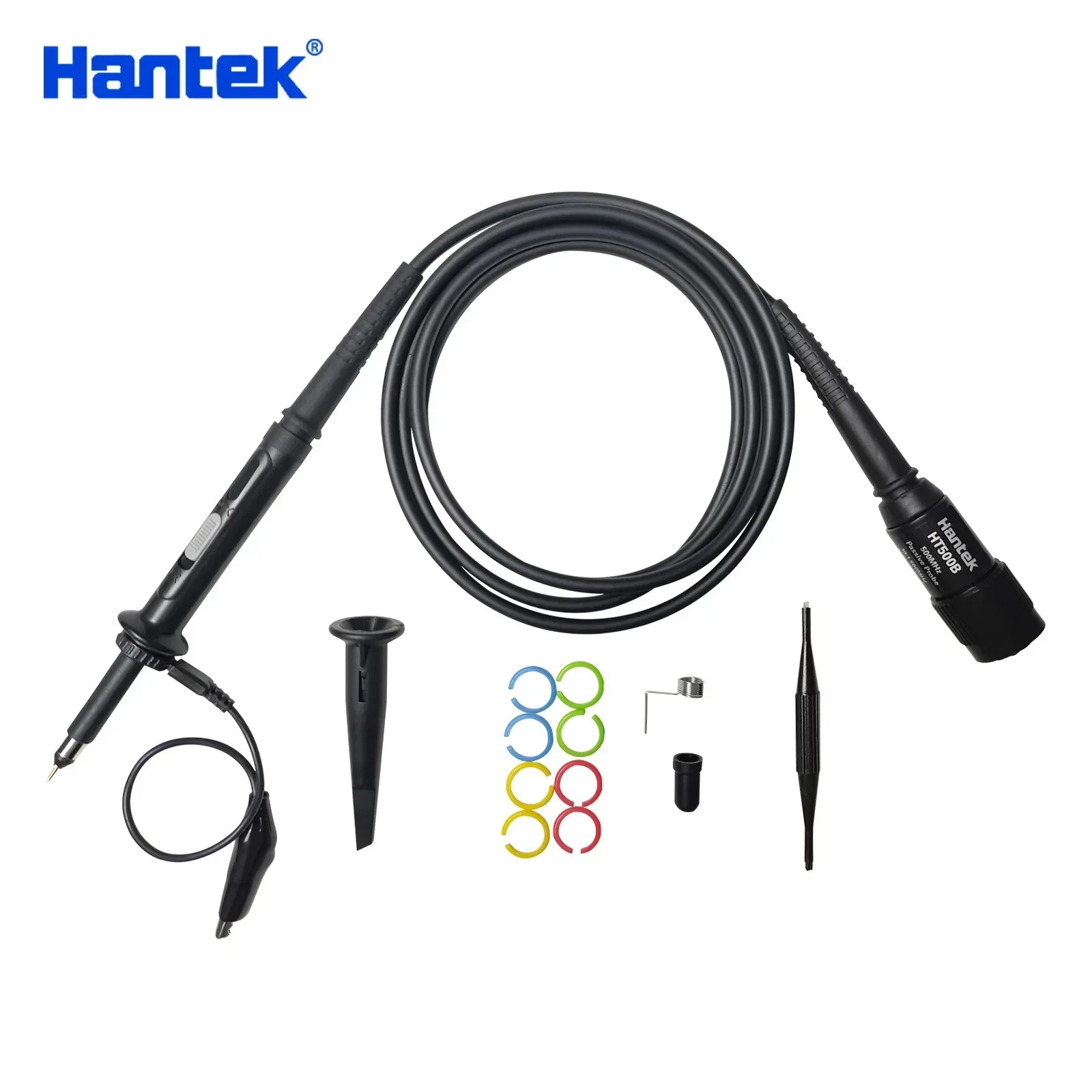

The Hantek HT300B 300 MHz and HT500B 500 MHz passive probes are high impedance probes with switchable attenuation ratio 1:1 and 10:1. These are compatible with Hantek digital storage oscilloscopes or similar oscilloscopes with 1 Mohm BNC input.

NOTE: The BNC connector of these probes has a pin hole without a pin. This is as per the design and does not indicate any damage or fault in the probe.

Electrical Characteristics

• Attenuation Ratio: 1:1 / 10:1
• Input Capacitance: 1:1 – 100pF, 10:1 – 15pF
• Compensation Range (when terminated into 1 Mohm): 15pF – 40pF
• Input Resistance: 1:1 – 1MΩ, 10:1 – 10MΩ
• Maximum Input Voltage: 1:1 – 150V rms CAT II, 10:1 – 300V rms CAT II
• Bandwidth For HT300B: 1:1 – 6 MHz, 10:1 – 300 MHz
• Bandwidth For HT500B: 1:1 – 6 MHz, 10:1 – 500 MHz
