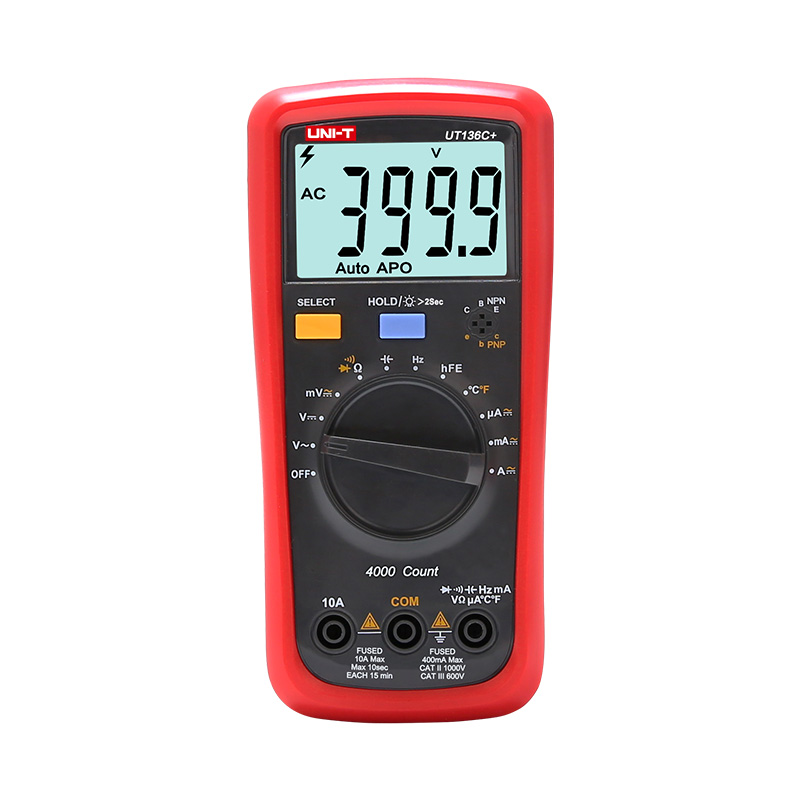

UNI-T UT136C+ AC/DC CAT II1000V/CAT III 600V Autoranging Handheld Digital Multimeter
Buy it now
$73.60 incl. GST
Shipped Nationwide
In Stock in NZ
When will I receive it?
2 - 4 days (estimated lead time - same day shipping before 3pm)
Description
The new generation of UT136+ series digital multimeter has an innovative industrial design which ensures that the product can withstand a drop of 2 meters. Large LCD screen provides a clear display and its 4 times/second sampling rate provides users with more accurate readings. UT136+ series is designed to work safely in CAT II1000V/CAT III 600V environments.
- Measures up to 1000V and 10A AC/DC voltage and current
- Equipped with 3mm protective sleeve; 2 meters drop proof
- Large LCD display; Overload alarm
- Quick sampling rate, up to 4 times/s
- Quick capacitor measurement (measures 1mF in 4 seconds)
- Low power consumption and auto power saving function; long battery service life (>500hrs)
- Non-contact voltage detection
| DC Voltage (V) | 1000V | ±(0.7%+3) |
| AC Voltage (V) | 1000V | ±(1%+3) |
| DC Current (A) | 10A | ±(1%+3) |
| AC Current (A) | 10A | ±(1.2%+5) |
| Resistance (Ω) | 40MΩ | ±(0.8%+2) |
| Capacitance (F) | 40mF | ±(3%+5) |
| Frequency (Hz) | 400Hz~40mHz | ±(0.1%+4) |
| Temperature (°C) | -40~1000℃ | ±(1%+4) |
| Temperature (℉) | -40~1832℉ | ±(1.5%+5) |
| Display Count | 4000 | — |
| hFE (Transistor measurement) | √ | — |
| Non-Contact Voltage Detection | √ | — |
| Diode/Transistor Test | √ | — |
| Continuity Buzzer | √ | — |
| Data Hold / Auto Power Off | √ | — |
| Low Battery Indication | √ | — |
| LCD Backlight | √ | — |
| Safety Rating | CAT II 1000V, CAT III 600V | √ |
| Drop Test | 2m | √ |
| Power | 1.5V battery (R6) × 2 | |
| Display | 56.5mm × 36mm | |
| Product Color | Red and grey | |
| Net Weight | 330g | |
| Product Size | 175mm × 83mm × 53mm | |
| Standard Accessories | Batteries, test leads, temperature probe | |
| Individual Packing | Box, English Manual | |
| Quantity per Carton | 30pcs | |
| Carton Size | 390mm × 335mm × 340mm | |
| Carton Gross Weight | 12.75kg | |
Additional information
| Weight | 0.33 kg |
|---|---|
| Dimensions | 8 × 18 × 5 cm |
