Hantek 4 Channel 200MHz 2GSa/s 2MGpts DPO Oscilloscope

Hantek 4 Channel 200MHz 2GSa/s 2MGpts DPO Oscilloscope
Hantek 4 Channel 200MHz 2GSa/s 2MGpts DPO Oscilloscope - Image 2
Hantek 4 Channel 200MHz 2GSa/s 2MGpts DPO Oscilloscope - Image 3
Hantek 4 Channel 200MHz 2GSa/s 2MGpts DPO Oscilloscope - Image 4
Hantek 4 Channel 200MHz 2GSa/s 2MGpts DPO Oscilloscope - Image 5

Buy it now

$1,608.63 incl. GST

Choose your free gift at checkout!
Spend $300.00 or more and get a free gift.

Yihua XQ-3 Solder Suction/Sucker Pump / Remover Tool
Proskit Anti-static Diagonal Side Cutter Pliers
RELIFE RL-001H 360 Degree Rotating Repair Tool Storage Unit
MECHANIC R300 Series 4mmx1.5m Solder Wick/Braid Roll
SKU: DPO7204C Categories: , Brand:
Shipped Nationwide

In Stock

When will I receive it? 7 days (estimated lead time)

Staff Review

An amazing value-for-money DPO oscilloscope, we’re impressed with this Hantek 4-Channel 200MHz DPO Oscilloscope. It’s a solid choice for professionals seeking high performance at an affordable price. With 2GSa/s sampling, 2G memory depth, and versatile features like serial decoding, it excels at tasks from glitch detection to detailed signal analysis. Ideal for your workshop or lab.

Description

An integrated 8-in-1 measurement instrument combining an oscilloscope, spectrum analyzer, digital voltmeter, frequency meter/accumulator, and protocol analyzer, designed to simplify complex test systems. It offers 200MHz bandwidth, 2 GSa/s real-time sampling, 2 G memory depth, fast waveform capture up to 500,000 wfms/s, advanced serial decoding, extensive automatic measurements, and powerful analysis tools on a 10.1-inch multi-touch display for professional and efficient signal analysis.

The DPO (Digital Phosphor Oscilloscope) technology provides 256-level waveform grayscale and color-temperature display, allowing signal intensity and rare events to be visualized more clearly, similar to the behavior of traditional analog phosphor oscilloscopes.

Please note, the logic analyser probes are an optional extra.

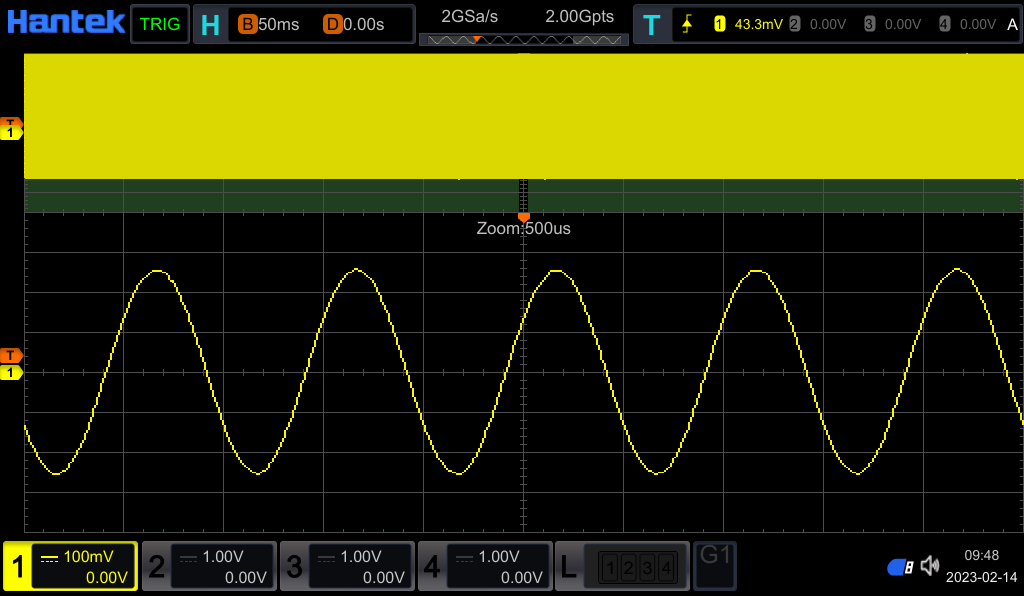

2G memory depth

2G memory depth

Ultra-long memory depth of 2G. Fully understand waveform overall and details, will not lose any accidental events and waveform changes.

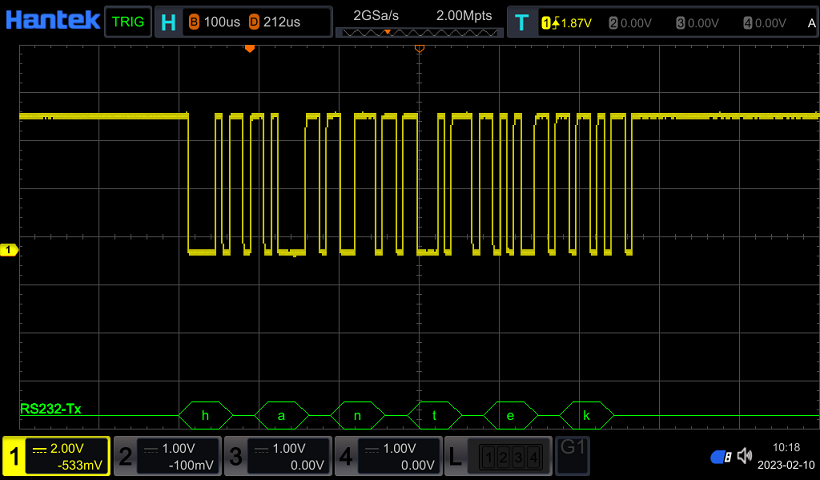

Serial bus triggering and decoding

Provides bus triggering and decoding functions, supports multiple protocols UART, I2C, SPI, LIN, CAN and can decode and display bus protocol information quickly and intuitively.
Serial bus triggering and decoding

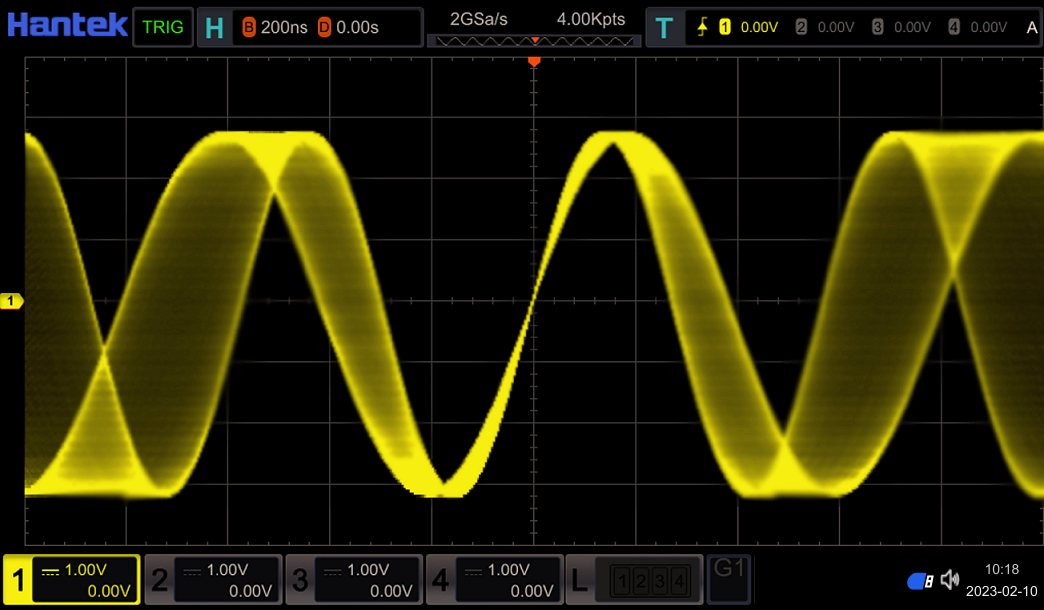

Waveform digital fluorescent display

Waveform digital fluorescent display

Provide digital fluorescence multi-level waveform grayscale display effect, which can help users quickly find potential anomalies in the signal.

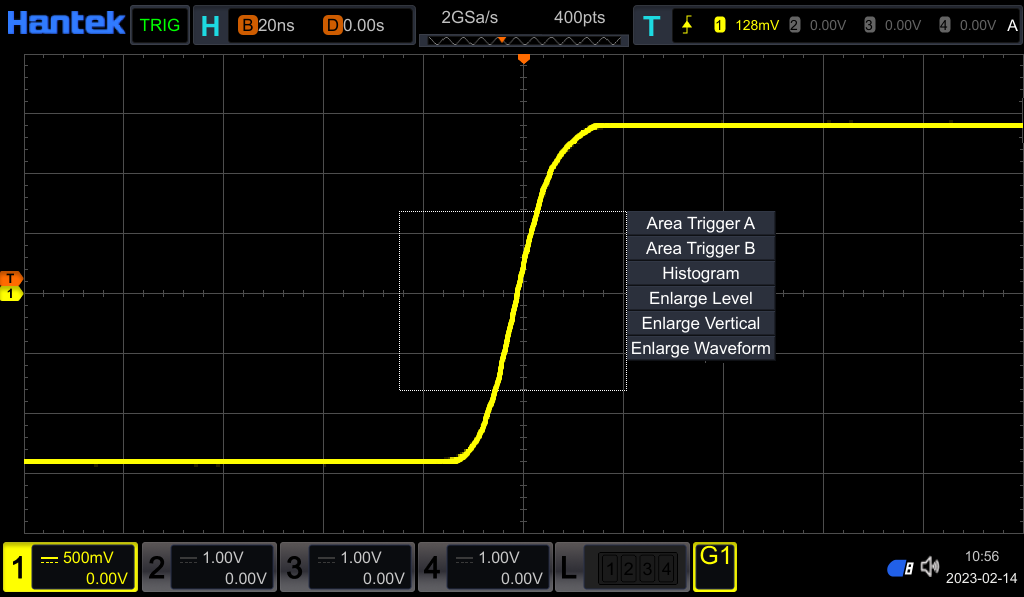

Area trigger function

By drawing the region, you can set the region trigger. The region trigger can simplify the operation of advanced trigger and quickly isolate the waveform of interest.
Area trigger function
Test parameter function

Test parameter function

5-digit digital voltmeter and 6-digit hardware frequency meter function; Real-time statistics of minimum, maximum, average, standard deviation and other information enable you to execute tests more efficiently.

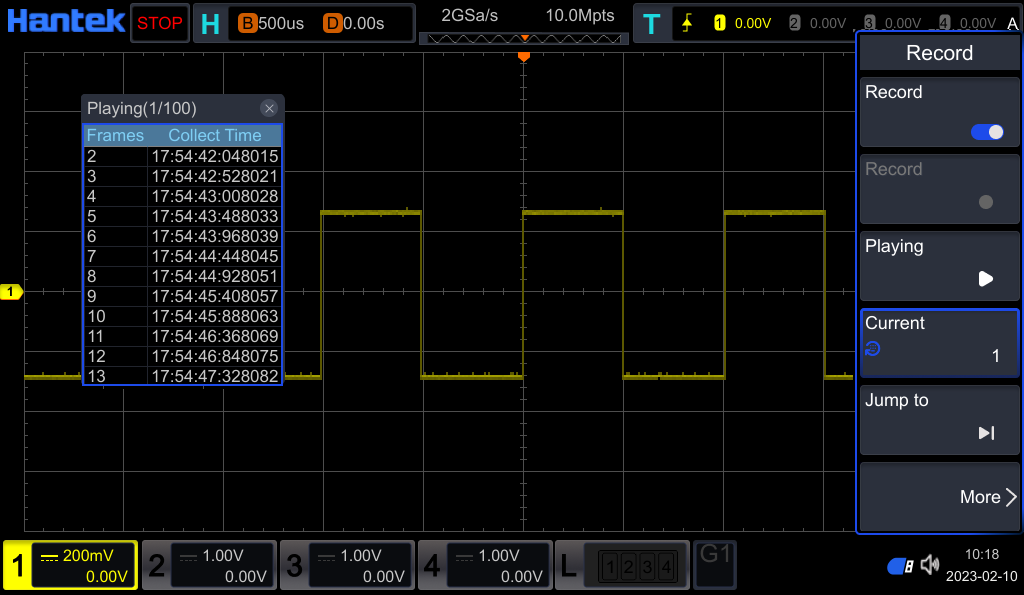

Waveform recording and playback

The waveform recording function option is provided to record the waveform changes in real time without interruption, and mark the time on the signal, so as to play back the waveform conveniently and find out the fault.
Waveform recording and playback

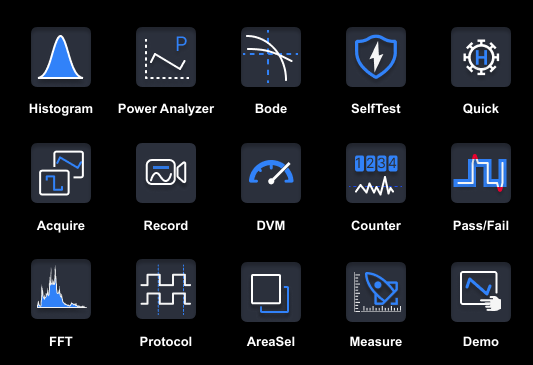

Quick operation function

Quick operation function

The shortcut operation panel including 15 common functions can be opened with one button without searching. Making the operation faster and the measurement more efficient.

Specifications

Model DPO7504E DPO7354E DPO7204E DPO7104E
Channel 4 Channel Oscilloscope
Bandwidth 500MHz 350MHz 200MHz 100MHz
Real-time Sampling Rate 2GSa/s single channel, 2GSa/s half channel, 1GSa/s all channel
Memory Depth 2Gpts (single channel), 1Gpts (dual channel), 500Mpts (three-four channels), 250Mpts (full channel)
Waveform Capture Rate 500,000 wfms/s (25ns dot display single channel automatic memory depth)
Vertical Resolution 8 bit
Vertical Sensitivity 1 MΩ: 500μV/div ~ 10 V/div; 50 Ω: 500μV/div ~ 1 V/div
Time Base Range 500ps/div ~ 1ks/div 1ns/div ~ 1ks/div 2ns/div ~ 1ks/div 2ns/div ~ 1ks/div
Time Base Accuracy ±1 ppm ± 1 ppm/year
Bandwidth Limitation 20MHz, 100MHz, 200MHz, 350MHz; independent optional for each channel
Trigger Type Edge, Pulse, Video, Slope, Overtime, Window, Logic, Overamp, Runt, Pattern, Delay, Setup/Hold, Nth Edge, UART, LIN, CAN, SPI, I2C
Bus and Decoding UART, I2C, SPI, LIN, CAN
Mathematical Operation A+B, A-B, A*B, A/B, FFT, A&&B, A||B, A^B, !A, Intg, Diff, Sqrt, Lg, Ln, Exp, Abs, LowPass, HighPass, BandPass, BandStop, AX+B, Expression
Automatic Measurement 51 kinds of parameter measurement, supporting statistics and analysis
Analysis Function Frequency meter, DVM, Power Analyzer, Histogram, Search, Navigate, Record, Bode Set
Hardware Recording and Playback More than 2 million frames (single channel)
Input Coupling DC, AC or GND
Input Impedance and Capacitance 1 MΩ ± 1%, 50 Ω ± 1%; 19 pF ± 3 pF
Digital Channel 16 channels, 1GSa/s sampling rate
Interface USB HOST, USB DEVICE, LAN; optional: HDMI, serial port
Screen 10.1 inch multi-touch capacitive screen, 256-level waveform grayscale display with color afterglow

Additional information

Weight 6.2 kg
Dimensions 46 × 36 × 28 cm
Bandwidth

200MHz
Channels

4
Waveform Generator

No
Power Source

Mains

Reviews

There are no reviews yet.

Be the first to review “Hantek 4 Channel 200MHz 2GSa/s 2MGpts DPO Oscilloscope”

Your email address will not be published. Required fields are marked *
