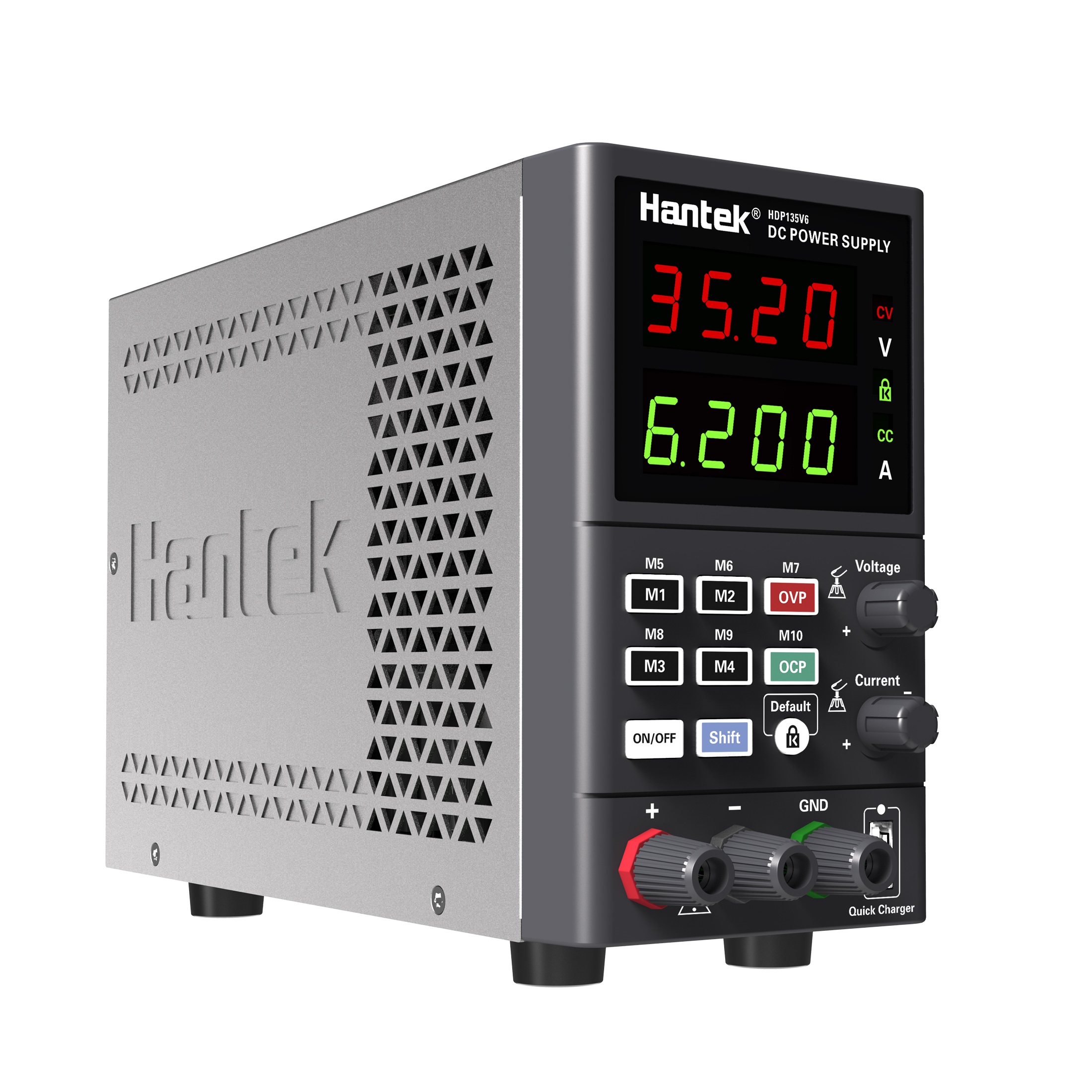

Hantek Bench Power Supply 35V, 7A OCP, 210W

Buy it now

$305.67 incl. GST

SKU: HDP135V6A Category: Brand:
FREE Shipping On All Orders

In Stock

When will I receive it? 5 - 9 days (estimated lead time)

Description

Four-digit display voltage and current, resolution up to 10mV/1mA; Standard USB quick charge function, support a variety of quick charge protocols; Storage functions up to 10 groups; AC input voltage 230/115V switch, universal; Fully isolated serial port, software support multiple power supply control, easy to set up measurement and control or aging system; Over voltage, over current, overload, overheating, short circuit protection functions; Low noise temperature control fan, quiet and durable; 0~160V/0~8A output is stable and pure; On/Off output control, one-button panel lock function to prevent misoperation. It is an ideal power supply for laboratory, production line and home appliance maintenance.

  • Four digit display voltage and current, resolution up to 10mV/1mA;
  • Standard USB quick charging function, 5-12V output, supporting a variety of quick charging protocols;
  • 10 groups of data storage/retrieval functions;
  • AC input voltage 230/115V switch, universal;
  • Fully isolated serial port, software support multiple power supply control, easy to set up measurement and control or aging system;
  • Over voltage, over current, overload, overheating, short circuit protection functions;
  • Low noise temperature control fan, quiet and durable;
  • 0~160V/0~8A output is stable and pure; On/Off output control, one-key panel lock function to prevent misoperation;
  • Constant voltage (CV)/ constant current (CC) mode automatic switch, effectively protect the circuit;
  • Two-stage adjustment topology, no impact on the load when the power is turned on;
  • Ultra-thin body, light and easy to carry, excellent indicators, excellent quality, stable performance, strong durability.



Product Features:

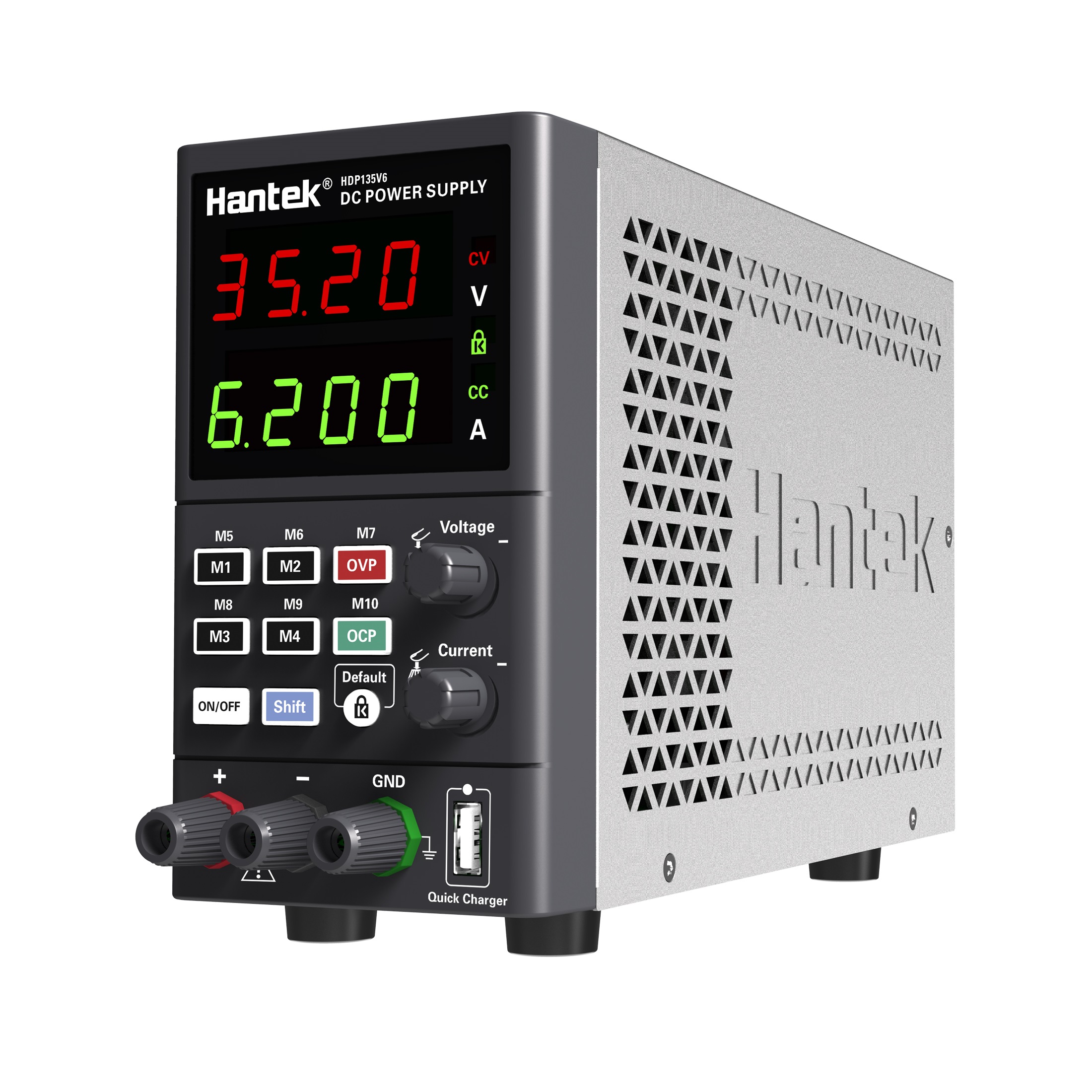

Compact Size, High Power, Full Protection

Ultra-thin design with powerful, stable performance. Equipped with overvoltage, overcurrent, overload, overheating, and short-circuit protection. Features automatic Constant Voltage (CV) / Constant Current (CC) switching, allowing use as either a constant voltage or constant current source.
Compact Size, High Power, Full Protection

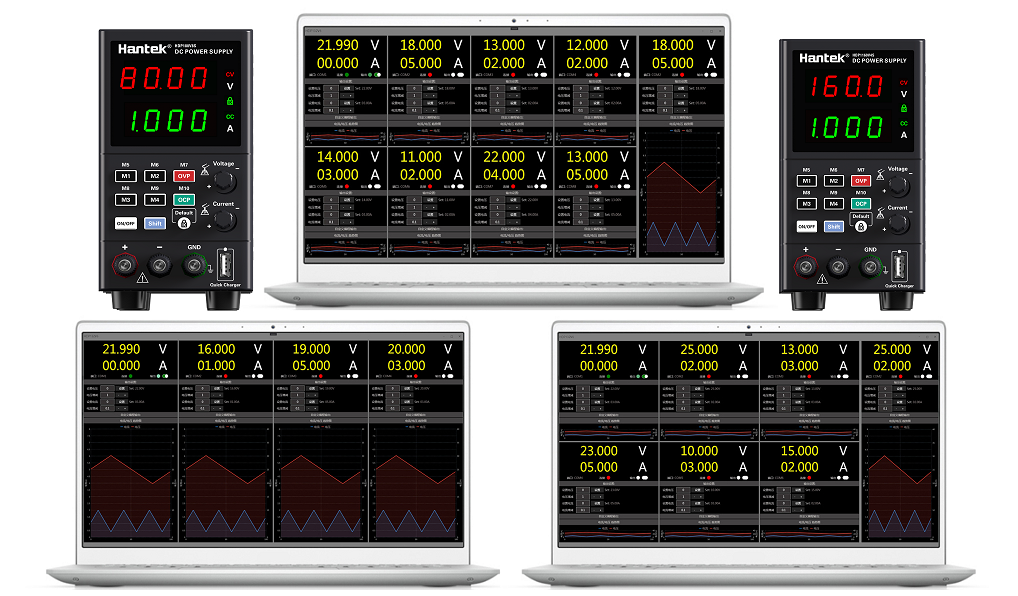

PC Control & Multi-Unit Linkage

PC Control & Multi-Unit Linkage

Fully isolated serial port with software support for controlling multiple power supplies simultaneously. Easy setup for measurement, control, or aging systems. Includes storage and recall for 10 data groups.

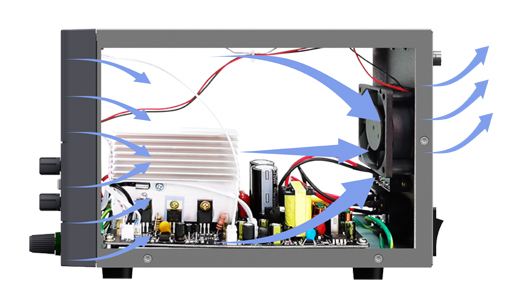

Intelligent Cooling System

Low-noise, temperature-controlled fan for quiet, durable operation. Optimized cooling duct design enables continuous full-load operation without overheating. Switchable 230V/115V input for universal use.
Intelligent Cooling System

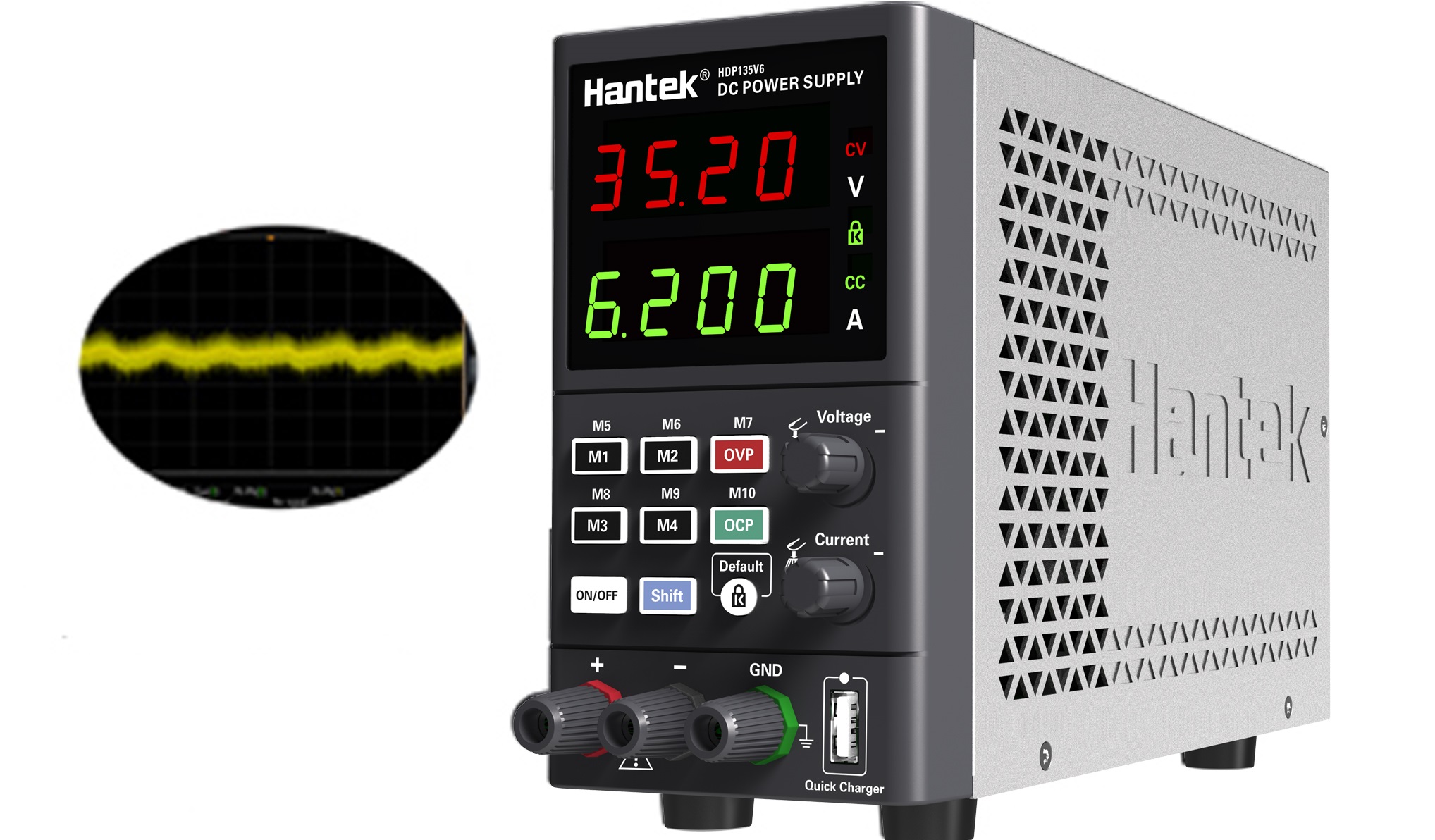

Low Ripple, Low Noise

Low Ripple, Low Noise

10 mVrms ripple for clean output and minimal interference. 10 mV / 1 mA resolution ensures high accuracy in both voltage and current output.

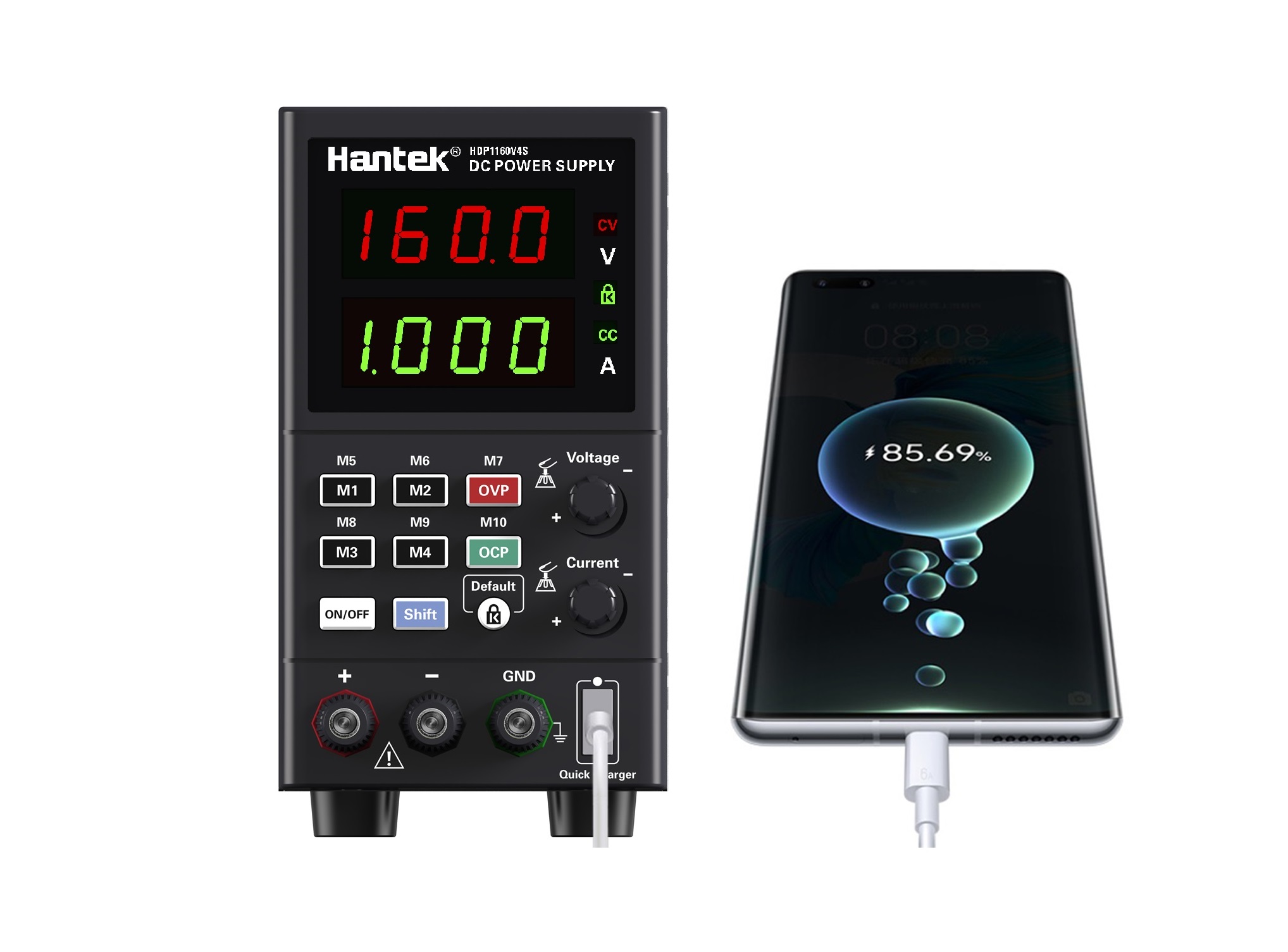

USB Quick-Charging Function

Automatically detects fast-charging protocols and adjusts output voltage and current accordingly. Supports 5V/3.4A, 9V/2.0A, and 12V/1.5A for up to 18 W output. Compatible with DCP (Apple, Samsung, BC1.2), Qualcomm QC2.0/QC3.0, Huawei Quick Charge FCP, and Samsung Quick Charge.
USB Quick-Charging Function

Specifications

Category Specification
Voltage
Load Regulation ≤ 0.1% + 5 mV
Linear Regulation ≤ 0.01% + 5 mV
Setting Resolution 10 mV
Setting Precision ≤ 0.1% + 1 digit
Readback Resolution 10 mV
Readback Accuracy ≤ 0.1% + 1 digit
Ripple 10 mVrms
Overvoltage Protection (OVP) 0 ~ 37 V ± 0.2% FS
Maximum Voltage 35.2 V ± 0.2%
Current
Load Regulation ≤ 0.2% + 3 mA
Linear Regulation ≤ 0.2% + 3 mA
Setting Resolution 1 mA
Setting Precision ≤ 0.2% + 3 mA
Readback Resolution 1 mA
Readback Accuracy ≤ 0.2% + 3 digits
Ripple 5 mArms
Overcurrent Protection (OCP) 0 ~ 7 A ± 0.2% FS
Maximum Current 6.2 A ± 0.2%
Quick Charge
Output Voltage Range 5 V ~ 12 V
Output Power Max 18 W
Supported Protocols DCP (Apple, Samsung, BC1.2), Qualcomm QC2.0/QC3.0, Huawei FCP, Samsung AFC
General Features
Remote Interface N/A (RS232 only for S series)
AC Input 230 Vac ± 10%, 50/60 Hz
Rated Output Power 210 W
Working Conditions Temp: -10 °C ~ 40 °C, RH ≤ 80%
Storage Conditions Temp: -20 °C ~ 60 °C, RH ≤ 80%
Cooling Air cooling
Weight 1.30 kg
Dimensions 85 × 160 × 260 mm

Additional information

Weight 1.3 kg
Dimensions 8.5 × 16 × 26 cm
Power

210W

Channels

1
