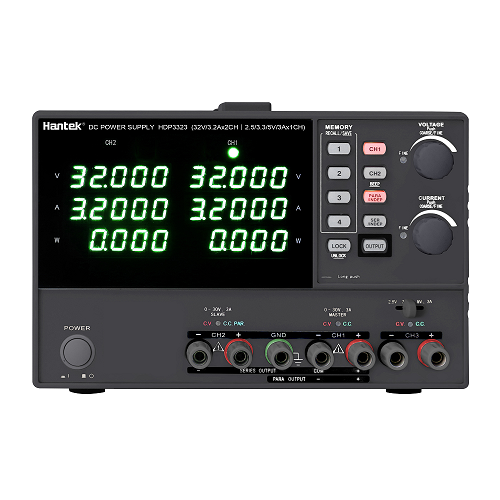

Hantek 3 Channel 2x30v, 1×2.5/3.3/5v with USB Programmable DC Power Supply HDP3323

Hantek 3 Channel 2x30v, 1x2.5/3.3/5v with USB Programmable DC Power Supply HDP3323

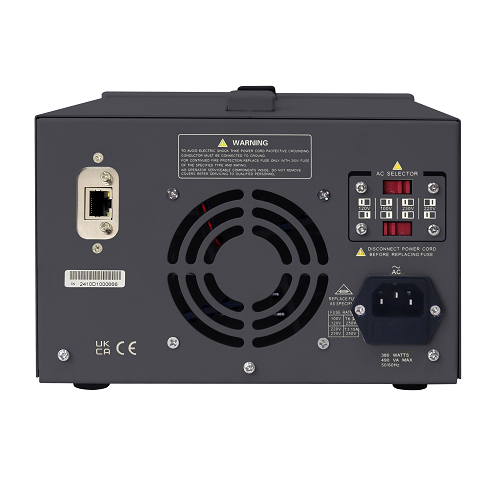

Hantek 3 Channel 2x30v, 1x2.5/3.3/5v with USB Programmable DC Power Supply HDP3323 - Image 2

Buy it now

$767.14 incl. GST

Choose your free gift at checkout!
Spend $300.00 or more and get a free gift.

Yihua XQ-3 Solder Suction/Sucker Pump / Remover Tool
Proskit Anti-static Diagonal Side Cutter Pliers
RELIFE RL-001H 360 Degree Rotating Repair Tool Storage Unit
MECHANIC R300 Series 4mmx1.5m Solder Wick/Braid Roll
SKU: HDP3323-USB Category: Tag: Brand:
Shipped Nationwide

NZ Flag In Stock in NZ

Don't be fooled international listings that add tax and GST at checkout. Buy locally and get free shipping and GST included pricing.
When will I receive it? 2 - 4 days (estimated lead time)

Description

Hantek 3 Channel 2x30v, 1×1.8/3.3/5v with USB Programmable DC Power Supply

Power your bench with precision and confidence. The Hantek HDP3323 Triple-Output Programmable Linear DC Power Supply delivers ultra-stable, high-resolution performance with 1mV / 0.1mA control, making it ideal for electronics development, education labs, and repair work. With three independently adjustable outputs, series/parallel tracking, USB remote control, and 4 save/recall memories, the HDP3323 combines professional-grade accuracy with everyday ease of use – perfect for modern test benches that demand flexibility, reliability, and outstanding value.

Key Specifications

  • Channels:
    1. 0 – 30V
    2. 0 – 30v
    3. 2.5/3.3/5v
  • Current Output: 0-3A x 3
  • Voltage Resolution: 1mV
  • Interface: USB

Specifications

Model HDP3323
Output Channel CH1 CH2 CH3
Voltage 0~30V 0~30V 2.5/3.3/5.0V
Current 0~3A 0~3A 0~3A
Constant voltage mode Change rate Voltage variation rate ≤0.01%+3mV
Load variation rate ≤0.01%+3mV (rated current ≤3A); ≤0.02%+5mV (rated current >3A)
Ripple & Noise ≤1mVrms (5Hz~1MHz)
Recovery time ≤100μS (load variation 50%, minimum load 0.5A)
Temperature coefficient ≤300ppm/℃
Output range 0~rated current, continuously adjustable
Constant current mode Change rate Voltage variation rate ≤0.2%+3mA
Load variation rate ≤0.2%+3mA
Ripple current ≤3mArms
Output range 0~rated current, continuously adjustable
Tethered tracking mode Parallel variation rate Voltage variation rate ≤0.01%+3mV
Load variation rate ≤0.01%+3mV (rated current ≤3A); ≤0.02%+5mV (rated current >3A)
Series variation rate Voltage variation rate ≤0.01%+5mV
Load variation rate ≤300mV
Tracking error ≤0.5%+10mV (10–30V no-load), connected load ≤300mV
≤0.5%+30mV (0–9.99V no-load), connected load ≤300mV
Meter header Display Voltage: 5 digits, 0.4″ LED display
Current: 5 digits, 0.4″ LED display
Power: 5 digits, 0.4″ LED display
Resolution Voltage: 1mV
Current: 0.1mA
Power: 1mW
Programming accuracy (25±5℃) Voltage: ±(0.03% reading + 10 digits)
Current: ±(0.3% reading + 10 digits)
Reading accuracy (25±5℃) Voltage: ±(0.03% reading + 10 digits)
Current: ±(0.3% reading + 10 digits)
CH3 specifications Output voltage (2.5V / 3.3V / 5V) ±8%
Output current 3A
Change rate (25±5℃) Voltage variation rate ≤0.01%+3mV
Load variation rate ≤0.01%+3mV
Ripple & Noise ≤1mVrms (5Hz~1MHz)
Lock key function Yes
Save / Retrieve 4 groups
Power supply AC 100V / 120V / 220V / 230V ±10%, 50/60Hz
Size & Weight 210 × 130 × 265 mm; about 7 kg

Additional information

Weight 10.5 kg
Dimensions 43 × 41 × 27 cm
Channels

3
